Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001-2008;CE | Type: | Fully Automatic |
|---|---|---|---|
| Welding Speed: | 75times/minute | Mesh Width: | Max.2100mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Wire Diameter: | 0.025-0.4 Mm |
| Warranty: | 1 Year | Weight: | 2-5T |
| High Light: | wire mesh making machine,wire mesh manufacturing machine |
||
The Intrudution Of Jinglian Machinery
Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.
The wire mesh machine producing the wire mesh which is highly adaptive to metal wires,It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern and tappered contrast microgroove
The wire machine works automatic stopping and displaying functions at any warp broken or weft broken, The whole machine works stable in a low center of gravity and a low level of noise.

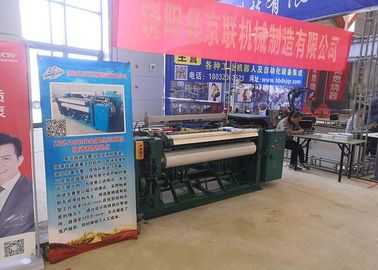

The type of ZWJ-1300B weaving machine is an improvement based on type 1300A weaving machine to satisfy the user's requirements,as some of the parts are rebuilted,Type B machine is especially improved in the rigidity when comparing with typeA machinem the ths it is more suitbale for weaving with wires in larger diameter.
The Appllication of the Wire Mesh Weaving Machine

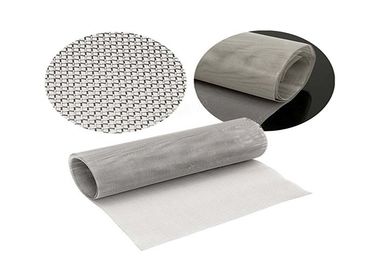

Mainly used in filter industry and screen window
The light-duty metal wire net weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.
| Model Number: | ZWJ--1600B1 | Power(W): | 2.2KW |
| Dimension(L*W*H): | 2.6m*3.1m*1.4m | Weight: | 2900KG |
| Wire Diameter: | 0.025--0.2 mm | Mesh Width: | 1600mm |
| Mesh Size: | 40-400mehs/inch | Beating-up Frequency: | 70-120 r/min |
| Warranty: | 1 Years | Color: | Green or Requirement |
| Certification: | ISO9001 | Condition: | New |
| Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
| Packaging Details: | Wooden Case | Port: | Xingang Tianjin |
| After-sales Service Provided: | Engineers Available To Service Overseas | ||
Description:
Zwj1300B1 is a modification of 1300B, which is mainly related to lubrication and acceleration. The improvement of lubrication is based on the serious situation that the user's on-site lubrication and refueling work is serious, the on-site oil pollution is serious, and the national environmental protection form is unprecedentedly serious. In order to improve the above situation, the improvement is mainly to reduce the lubrication point, and the bearing is mainly a non-lubricating mechanism,acceleration is to increase the efficiency of the machine model to 70 times per minute. In the case that the machine model structure remains unchanged, by replacing some components, the speed of 120 times per minute can be achieved, thereby greatly improving production efficiency and reducing labor costs.
Main features:1.It is highly adaptive to metal wires.2.It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.3.The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.4.It works automatic stopping and displaying functions at any warp broken or weft broken.5.The whole machine works stably in a low center of gravity and a low level of noise.

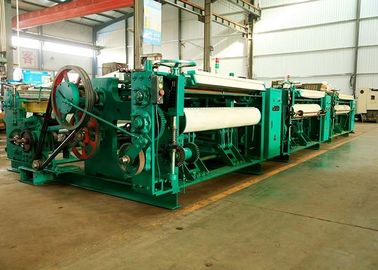

Main machine technical parameters of The Light-duty Wire Mesh Weaving Machine:
| TYPE | ZWJ-1300B1 | ZWJ-1600B1 | ZWJ-2100B1 |
| MESH SIZE | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
| WIRE DIAMETER | 0.025-0.200mm | 0.025-0.200mm | 0.025-0.200mm |
| BEATING-UP FREQUENCY | 70-120 r/min | 70-120 r/min | 70-120 r/min |
| MESH WIDTH | 1300mm | 1600mm | 2100mm |
| MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
| OVERALL SIZE | 2.6m*2.8m*1.4m | 2.6m*3.1m*1.4m | 2.6m*3.6m*1.4m |
Main machine technical parameters of 1600 Series Wire Mesh Weaving Machine Manufacturer
| Item | Weaving Width(mm) | Wire Diameter(mm) | MeshSize(mm) | Power(v) | WeavingSpeed (T/Min) | WeaveType |
| 1600B | 1600 | 0.025-0.2 | 40-400 | 380V2.2KW | 60-90 | Plain and Twill |
| 1600D | 1600 | 0.1-0.35 | 20-140 | 380V2.2KW | 60-90 | Plain and Twill |
