Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen

Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen
Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen

Large Image :  Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Machine Type: Automatic Width: 1300 Mm ,1600 Mm, 2600 Mm
Motor Power: 2.2 KW Wire Diameter: 0.025--0.200 Mm
Density: 4 -- 400 Mesh/inch Speed: 75 Times/min
Color: White And According To Your Requirements After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

Stainless Steel Wire Mesh Weaving Machine For Filter Screen

Summary

Stainless Steel Wire Mesh Weaving Machine For Filter Screen is composed of frame, main drive part, browning mechanism, rapier weft pulling mechanism and automatic holding mechanism. The main drive includes motor, two-stage belt drive and crankshaft. The rapier weft pulling mechanism includes gear, eccentric rod, connecting rod, tube joint bearing, weft clamping device, sword path and rapier belt. The upper end of the eccentric rod is installed On the pin shaft of the gear, the lower end is connected with the connecting rod, and the two connecting rods are provided with a pipe joint bearing, the lower connecting rod end is connected with the rack through the pipe joint bearing, the rack is meshed with the gear fixed with the sword belt, the gripper cuts off the weft line and the gripper edge, and the browning mechanism includes a cam, a browning foot, a browning and a pulley. Low noise, high production efficiency and improved operation conditions.


Main features




1

It is highly adaptive to metal wires.

2

It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.

3

The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.

4

It works automatic stopping and displaying functions at any warp broken or weft broken.

5

The whole machine works stably in a low center of gravity and a low level of noise.

6

Type ZWJ-1300B weaving machine is an improvement based on Type ZWJ-1300A weaving machine to satisfy the user's requirement, as some of the parts are rebuilt, Type B machine is especially improved in the rigidity when comparing with Type A machine, and thus it is more suitable for weaving with wires in larger diameters. For type ZWJ-1600Q weaving machine, the weave breadth is enlarged on the basis of Type ZWJ-1300A and ZWJ-1300B weaving machines.


The technical parameters are shown in the Table below.


Item

Unit

Reference value

Wire net maximum breadth

mm

1300

Density

mm

0.45~0.036

Crankshaft rotating speed

r/min

65~90

Brake moto Power

KW2.2
Brake moto VoltageV380
Brake moto Rotating speed

r/min

1420

External dimension

mm

2600×2800×1200


Operation


  1. The weaving machine can be started up and stopped at any running position.
  2. It has the function of automatic stop and red/green light indication at weft or warp broken.
  3. At a fault of weft broken or warp broken, the weaving machine will be automatically stopped and the red/green light will give an indication. The weaving machine can be brought back into normal operation after the fault is removed, the STOP button is pressed down, and the indicator is turned off. If the indicator does not turn off when the STOP button is pressed down, and the weaving machine can not be brought back into normal operation even by pressing down the FORWARD button, it means the fault hasn't been removed yet.
  4. When necessary, the weaving machine can be stopped at any running position by pressing down the STOP button.
  5. The weaving machine will be brought into reverse running by pressing down the REVERSE button. Usually reverse running is required at any weft broken, but it is recommended not using this function frequently otherwise the rapier will break off the warp line or the motor will be damaged because of overheat.


Machine picture

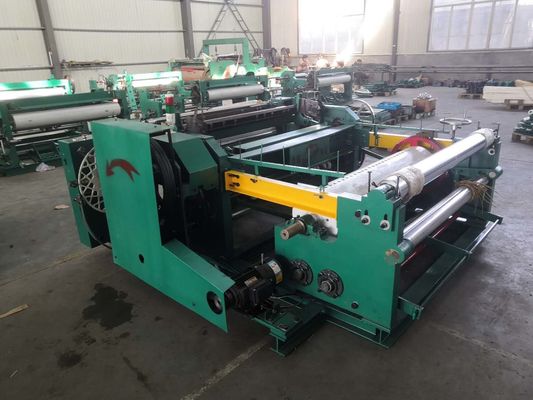

Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen 0

Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen 1
Long Life Stainless Steel Wire Mesh Weaving Machine For Filter Screen 2
