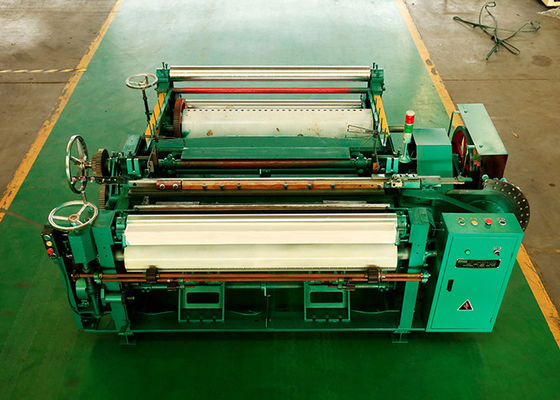

Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead Woven Type

Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead  Woven Type
Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead  Woven Type Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead  Woven Type Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead  Woven Type

Large Image :  Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead Woven Type

Product Details:
Place of Origin: Hebei,China
Brand Name: JingLian
Certification: CE
Model Number: ZWJ---1300 D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: nude packing
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detailed Product Description
Woven Type: Plain, Tilted,bead Pattern , Raw Material: Stainless Steel Wire
Mesh Size: As Request Warranty: One Year
Width: 1300 Mm,1600 Mm,1800mm, 2000mm,2200mm,2400mm,2600mm After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
High Light:

wire mesh equipment

,

industrial weaving machine

Full CNC Shuttleless Weaving Machine For 20--140 Mesh





The shuttleless weaving machine is one of the wire mesh machines. It can weave a certain range of wire or plastic wire. According to the requirements of the woven wire mesh, we have developed four types of shuttleless mesh machines: Type, d type, KD type, heavy duty. It is divided into 1000, 1300, 1600, 1800-2600mm wide mesh width shuttleless mesh machine models.



Features:



1. single electromotor driving

2. Automatic compensation of winding and was feeding

3. High adaptability to metal wire.
4. It adopts shuttleless straight line weft insertion weaving and mechanical automatic let-off and take-up, has small opening amount and smooth wire side, can weave microgroove mesh without bright spot or bright channel and produce high-grade screen mesh, and conforms to national standard.
5. Low center of gravity, good stability, low noise, less energy consumption, high efficiency
6. Reasonable design, simple structure, convenient operation, easy regulation and repair

7. Large adjusting range: Weave 20-140 mesh square hole mesh or 400 mesh special mesh with various lines, such as plain weave, twilled weave, satin weave, taper contrast thick mesh weaving, superior to other models



product information



The width of mesh(mm) Dimension(mm) Motor(kw) Weight(kg)
1300 2500X2000X1500 2.2 2000
1600 2800X2000X1500 2.2 2100
2000 3200X2000X1500 2.2 2200
2100 3500X2500X1700 2.2 2300
2200 4000X2500X1700 2.2 2400
2300 4200X3000X1800 2.2 2500
2600 4500X3000X1800 5.5 2600



product

Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead  Woven Type 0
