Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Full CNC | Width: | 1600 Mm |
|---|---|---|---|
| Motor Power: | 2.2 KW | After Sales Service: | Engineers Available To Service Overseas |
| Wire Diameter: | 0.1--0.35mm | Density: | 20 -- 140 |
| High Light: | wire mesh making machine,metal mesh machine |
||
Full CNC Type Wire Mesh Weaving Machine Rational Design Width 1600 mm
Summary
This model is designed and produced by our factory to adapt to the market demand. The shuttleless shaft is used for linear weft insertion and wire pre-bending molding, and weft embossing and weaving are completed simultaneously. The operation is simple, the operation is stable, and the production efficiency is high. It is suitable for weaving mesh with small and medium wire mesh and irregular metal wire mesh. It can weave a crimping net with a width of 1.3m-2.6m, a weaving tightness of 20-140 mesh and a wire diameter of 0.1mm-0.35mm. Widely used in the screening of aviation, petroleum, chemical and other fields.
Main features
|
1 |
Final products have a wide usage:for filter screen, decoration curtain wall, mine vibrating screen. |
|
2 |
It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove. |
| 3 |
The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects. |
| 4 |
It works automatic stopping and displaying functions at any warp broken or weft broken. |
| 5 |
The whole machine works stably in a low center of gravity and a low level of noise. |
| 6 |
Easy to learn and operate |
The technical parameters are shown in the Table below.
|
Item |
Unit |
Reference value |
|
Wire net maximum breadth |
mm |
1600 |
|
Density |
mm |
0.45~0.036 |
|
Crankshaft rotating speed |
r/min |
65~90 |
|
Brake moto Power |
KW | 2.2 |
| Brake moto Voltage | V | 380 |
| Brake moto Rotating speed |
r/min |
1420 |
|
External dimension |
mm |
2600×2800×1200 |

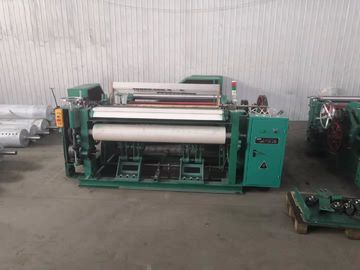

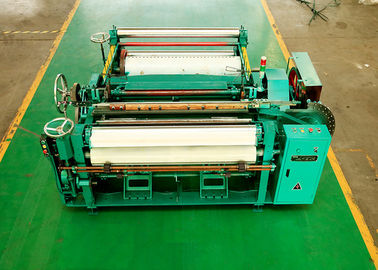

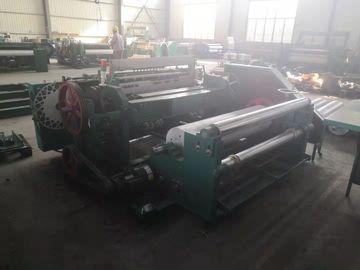

Machine picture
