Electric Numerical Control Wire Mesh Weaving Machine 380V For Fully Automatic

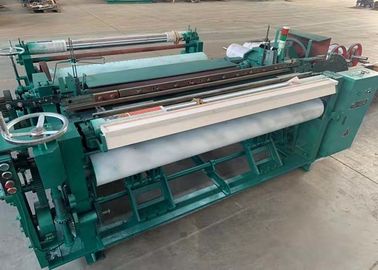

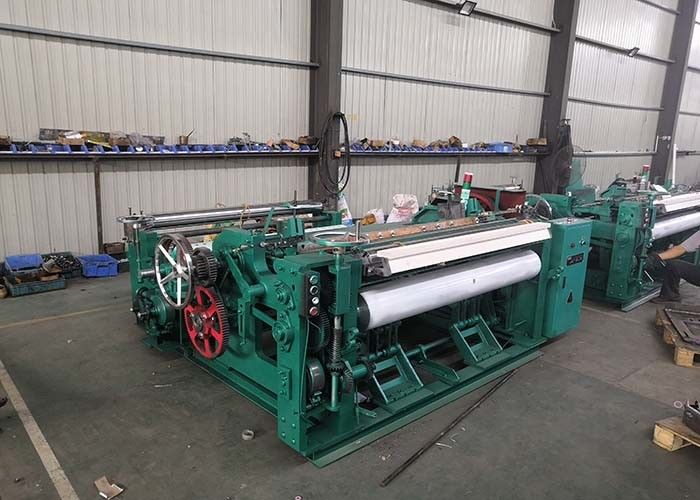

ZWJ-1300 Numerical Control Wire Mesh Weaving Machine

Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3.Fast weaving

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.

Characteristics and functions:

Through adopting the PLC programmable controlling system and controlling net reeling and warp pacing by servo motors,the fabric with 40-400 standard wire diameters can be more accurately weaved.The weaving tension can be automatically adjusted by tension sensor,thereby making higher precision of mesh ;the adoptionof conjugate cam beating-up machine and rapier transmission mechanism with tooth profile rapier band can make the beating-up speed reach 120 r/min,improving the efficiency of 70%;the mesh count regulation and net surface can realize numerical control with simple and accurate mesh count adjustment;the adoption of limitless net reeling method realizes the numerical display function of length of weaved net ,which can shorten the auxiliary weaving time, thereby greatly improving the production efficiency.

Main Parameters:
