Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw

Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw
Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw

Large Image :  Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--29
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 25 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Product Name: Wire Net Making Machine Max Width Of Weaved: 1300 MM
Speed: 75-80 Times/min Wire Diameter: 0.025-1.0 Mm
Voltage: 380 V 50 Hz Mesh Density (mesh): 40-400 Square Mesh
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

net weaving machine

,

wire mesh loom machine

Industrial Shuttleless Rapier Weaving Machine , Wire Net Making Machine 2.2 kw





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 year, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market,During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.Our products are as follows: light automatic welded wire mesh machine (in coil), heavy duty automatic welded wire mesh machine (in coil), automatic stainless steel welded wire mesh machine (in coil), culture water up welding wire mesh, geothermal heating wire mesh welding machine , CNC welding fence machine, fully automatic weft knitting and warp knitting net machine. Razor line machine, double-section barbed wire machine (CS-A type), single barbed wire machine (CS-B type), double type wire mesh continuous stranding (CS-S type), diamond mesh machine, automatic chain plate net Machine, semi-automatic chain wire mesh machine, NW type hexagonal net machine, heavy-duty hexagonal net machine (stone cage net machine), reverse twisted wire net machine, metal net machine, welded wire mesh machine (mesh type), computer controlled welding Net fence machine, steel bar welding net machine, diagonal wire welding machine (3D board production line machine) heavy-duty crimping net machine, (multi-function) crimping net machine, (semi-automatic) crimping net machine, beautiful grid crimping net Machine, grassland net machine, wire drawing machine, pulley continuous



pecifications


shuttleless weaving machine
1, 1300B 1300D heavy, heavy tudy type
2, B type, 40-350mesh,
2, D type, 10-100mesh

shuttleless weaving machine



Characteristics:



1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.





Model



Width



Opening density



Wire diameter



Rotating speed of crank shaft



Motor power

ZWJ1300B 1300MM 60-350 0.01-0.14 65-75 2.2kw
ZWJ1300D 1300MM 16-120 0.14-0.30 65-75 2.2kw
ZWJ1600B 1600MM 60-350 0.01-0.14 65-75 2.2kw
ZWJ1600D 1600MM 16-120 0.14-0.30 65-75 2.2kw
ZWJ2000heavy duty type 2000MM 10-100 0.2-1.0 45-55 5.5kw

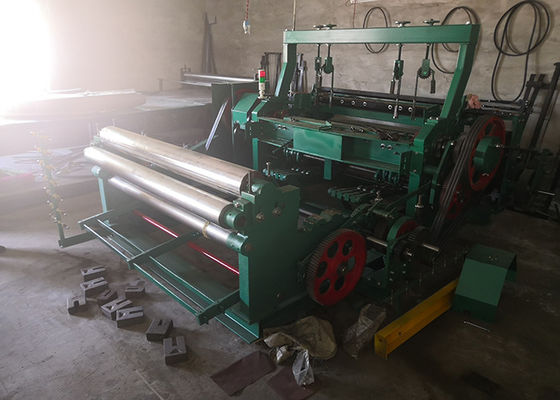

The Picture of the Wire Mesh Weaving Machine

Industrial Shuttleless Rapier Weaving Machine , Wire Net Weaving Machine 2.2 Kw 0
