High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V

Name: High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V
Brand: JingLian
SKU: ZWJ--11
Price: 1 USD
Availability: InStock
Rating: 4.9 (117 reviews)

Large Image : High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	JingLian
Certification:	IATF16949:2016
Model Number:	ZWJ--11

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Nude packing
Delivery Time:	25 Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/month

Contact Now

Detailed Product Description

Type:	Fully Automatic	Color:	Blue
Weight (KG):	4500	Mesh Hole Size:	1/2, 1, 2, 3, 4 Inches
Voltage:	380V	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
High Light:	automatic wire mesh welding machine , weld mesh making machine

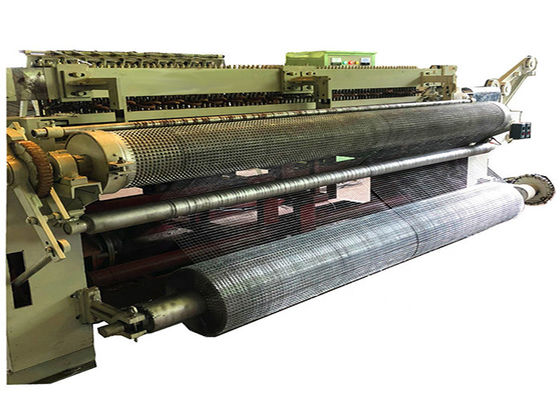

High Speed Electric Welded Wire Mesh Welding Machine

Description of machine:

Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine. Our roll welding wire mesh machine is featured by wire coil feeding and invert speed control. It is used to make wall mesh,construction mesh,animal cage, mining etc.

Mechanical features and advantages

1 Both of the longitude wire and cross wire are fed from wire coils automatically.
2 The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.
3 The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4 The welding time and welding current can be adjusted on the control panel to adjust the welding degree.
5 The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6 The mesh roll length can be set by counter switch on the control panel.

Mechanical parameters

Type	KY-DHW-1	KY-DHW-2	KY-DHW-3
Wire diameter	0.4-0.65mm	0.65-1.8mm/0.8-2mm	1.0-2.2mm/1.2-2.5mm
Aperture/pitch	1/4″,1/2″ 6.25,12.5mm	1/2″,1″,2″,3″,4″ 12.5,25,50,75,100mm	1″,2″,3″,4″ 25,50,75,100mm
Mesh width	Max.1m,1.2m	Max.1.2m,1.5m,2m	Max.1.2m,1.5m,2m
Motor	2.2kw	2.2kw;4kw	4kw;5.5kw
Welding speed	Max.75 rows/min	Max.120-180 rows/min	Max.80-120 rows/min
Transformer	50kva∗3	60kva∗4;60kva∗5;60kva∗7	70kva∗5/70kva∗6/70kva*7
Weight	1.5T	2T/2.5T	2T/2.5T/3T/3.5T

High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V 0
