Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Welding | Speed: | 225-265m Per Hour |
|---|---|---|---|
| Mesh Oepning: | 80x100 100x120 | Warranty: | 2 Years |
| Type: | Fully Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | chain link fence making machine,diamond mesh fencing machine |
||

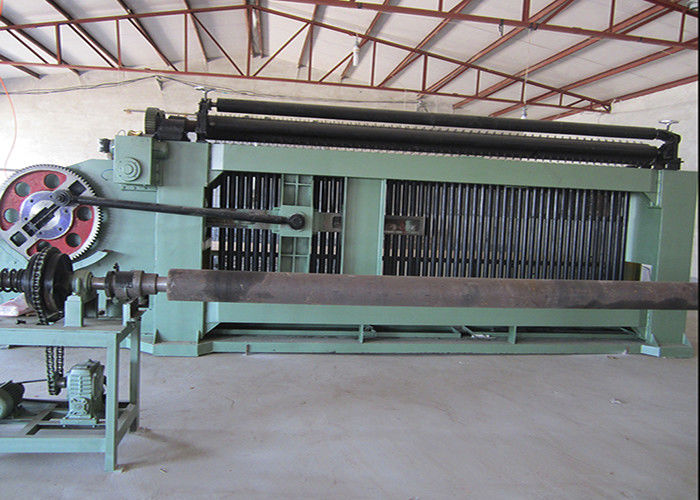

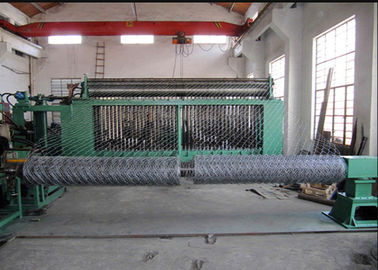

Stone Cages Wire Mesh Knitting Machines , Double Twist Hexagonal Mesh Machine
machine details
|
Model
|
Mesh Size(mm) | Max. Width(mm) | Wire diameter(mm) | Twisting Number | Main Drive Shaft Speed(r/min) | Motor Capacity(KW) | Theoretical Speed(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 2 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-3 | 100*!20 | 1.6-3.0 | 225 | ||||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
