Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter

Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter
Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter

Large Image :  Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
TYPE: ZWJ-1300B Condition: New
MESH SIZE: 40-400 Mesh/inch WIRE DIAMETER: 0.025-0.200 Mm
BEATING-UP FREQUENCY: 70 R/min MESH WIDTH: 1300 Mm
MOTOR POWER: 2.2KW OVERALL SIZE: 2.6m*2.8m*1.4m
High Light:

wire mesh equipment

,

industrial weaving machine

Stainless Steel Shuttleless Weaving Machine For Oil Filter



Shuttleless Weaving Machine Summary



Stainless Steel Shuttleless Weaving Machine For Oil Filter is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.



Shuttleless Weaving Machine Main features



  • It is highly adaptive to metal wires.
  • It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
  • The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
  • It works automatic stopping and displaying functions at any warp broken or weft broken.
  • The whole machine works stably in a low center of gravity and a low level of noise.
  • Type ZWJ-1300B weaving machine is an improvement based on Type ZWJ-1300A weaving machine to satisfy the user's requirement, as some of the parts are rebuilt, Type B machine is especially improved in the rigidity when comparing with Type A machine, and thus it is more suitable for weaving with wires in larger diameters. For type ZWJ-1600Q weaving machine, the weave breadth is enlarged on the basis of Type ZWJ-1300A and ZWJ-1300B weaving machines.

The Technical Parameters of the Wire Mesh Weaving Machine



TYPE

SKZWJ-1300 SKZWJ-1600 SKZWJ-2100

MESH SIZE



40-400mesh/inch 40-400mesh/inch 40-400mesh/inch

WIRE DIAMETER



0.025-0.35mm 0.025-0.35mm 0.025-0.35mm

BEATING-UP FREQUENCY



120r/min 120r/min 120r/min

MESH WIDTH



1300mm 1600mm 2100mm

MOTOR POWER



2.2kw 2.2kw 2.2kw

OVERALL SIZE



2.6m*3.4m*1.4m 2.6m*3.7m*1.4m 2.6m*4.2m*1.4m


Support to customize various models with special requirements

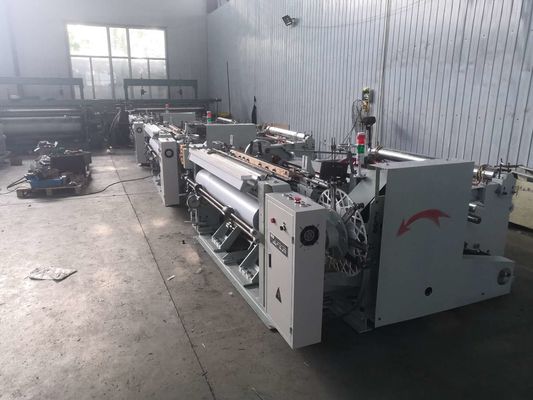

The Picture of the Shuttleless Weaving Machine

Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter 0

Stainless Steel Shuttleless Weaving Machine Wire Mesh Making Machine For Oil Filter 1
