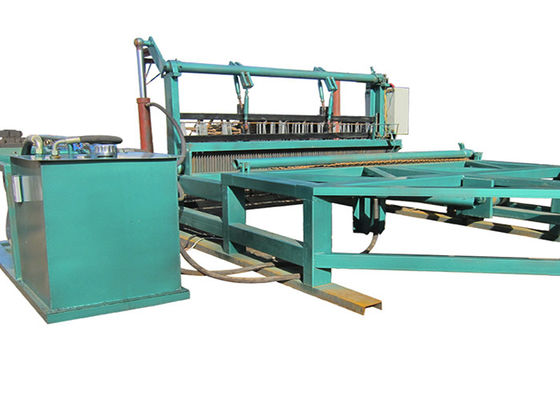

Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type

Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type
Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type

Large Image :  Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Condition: New Material: Galvanize Steel Wire,stainless Steel Wire
Weave Type: Plain Woven Technique: Woven
Wire Diameter: 0.025-1 Mm Voltage: 380V/50HZ/2.2 KW
High Light:

automatic crimped wire mesh machine

,

fiberglass mesh machine

Hot Dip Galvanized Crimped Wire Mesh Machine Mine Screen Loom Heavy Duty Type





Summary



Crimped Wire Mesh Machine: used for large diameter wire diameter cotton gin rolled into the required shape, all kinds of mechanical weaving square hole sieve special series of knitting machine, the product structure is compact, easy to operate, can be woven wire diameter 2mm -8mm, mesh 4mm-120mm, width of 1-2.2meters, knitting, machine products are widely used in mining for classification screen use (commonly known as mine screen mesh), mesh weaving machine is also known as mine.

The crimped wire mesh machine is made of a square mesh of wire woven by a new type of wire weaving machine, which has a variety of USES



The technical parameters are shown in the Table below.



Weaving width: 0.9-2.5m
Wire diameter: 1.5-6.0mm
Mesh: 3*3-80*80mm
Quality certification: ISO:9001:2008



The width of mesh(mm) Dimension(mm) Motor(kw) Weight(kg)
1000 2500X2000X1500 0.75 800
1200 2800X2000X1500 1.1 1000
1300 3200X2000X1500 1.1 1100
1500 3500X2500X1700 1.5 1250
1800 4000X2500X1700 1.5 1500
2000 4200X3000X1800 2.2 1800
2300 4500X3000X1800 2.2 2000



Semi Automatic Stainless Steel Wire Mesh Weaving Machine Plain Woven Type 0
