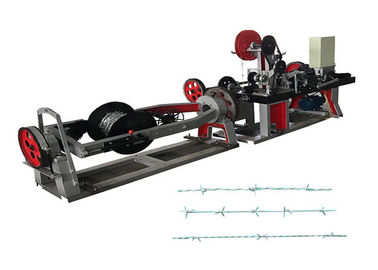

70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type

70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type
70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type 70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type

Large Image :  70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: JL--3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Place Of Origin: Hebei, China Motor: 2.2kw
Condition: New Wire Diameter (mm): 1.6 - 2.8
Warranty: 1 Year Production Capacity:: 70kg/hour
High Light:

automatic barbed wire making machine

,

razor barbed wire machine

Fully automatic high speed barbed wire making machine



Product Application

Our factory produces three types of barbed wire machines in . They are double strands barbed wire machine, single strand barbed wire machine and double strands reverse and twist barbed wire machine.Barbed wire machine is used to make barbed wire which can be used on the airport, miltary, railway, highway, agriculture, animal husbandry and so on

The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Steel cover on driving shaft for safety operation.

3) Saving materials and high capacity.

4) Counter to count the number of barbs and calculate length of barbed wire.

5) Button switches and leveler to start and stop machine easily.

6) Quick and easy roll extraction from the machine.



Model
Unit
KY-CS-A
KY-CS-B
KY-CS-C
Motor power
kw
2.2/3
Voltage
v
220V/380V/415V/440V (Customized)
Main drive shaft speed
r/min
400
355
355
Strand wire diamter
mm
1.6-3.0
2.0-3.0
1.8-2.8
Barb wire diameter
mm
1.6-2.8
1.6-2.8
1.6-2.8
Barb pitch
inch
3/4/5/6
3/4/5/6
3/4/5/6
Twisted number
/
3
3
7
Raw material
/
Low carbon steel wire,Galvanized wire, PVC wire.
Production
/
20 meters/minute
18 meters/minute
18 meters/minute



70kg / Hour Fully Automatic Barbed Wire Machine Simple Structure In Linear Type 0
