Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width

Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width
Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width

Large Image :  Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Width: 1600 Mm Type: Weaving
Motor Power: 2.2KW Density: 20-400 Mesh / Inch
Wire Diameter: 0.025-1 Mm Rotating Speed: 65-75 R / Min
High Light:

window screen making equipment

,

fiberglass weaving machine

Weaving Type Shuttle Loom Machine , Window Screen Machine 1300 Width







The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market,During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.



Specifications



1, 1300B 1300D light-duty, heavy tudy type
2, B type, 40-400mesh,
3, D type, 20-140mesh

4, Q type, 20-130mesh



Characteristics:



1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.



Table of Technical Parameters





Model



Width



Opening density



Wire diameter



Rotating speed of crank shaft



Motor power

ZWJ1300B 1300MM 40-400 0.025-0.2 65-75 2.2kw
ZWJ1300D 1300MM 20-140 0.35-0.10 65-75 2.2kw
ZWJ1600B 1600MM 40-400 0.025-0.20 65-75 2.2kw
ZWJ1600D 1600MM 20-140 0.35-0.10 65-75 2.2kw
ZWJ1600Q 1300MM 20-130 0.45-0.1 65-75 2.2KW
ZWJ2600heavy duty type 2000MM 4-20 0.41.0 45-55 5.5kw

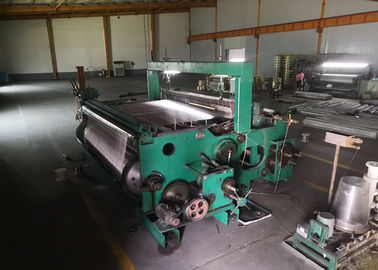

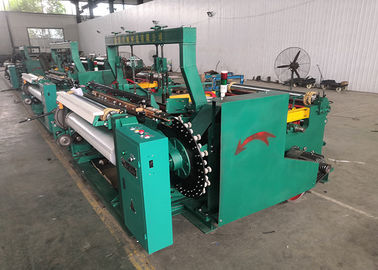

The Picture of the Wire Mesh Weaving Machine

Weaving Type Shuttle Loom Machine , Window Screen Making Equipment 1300 Width 0
