SS Rolled Brick Force Wire Mesh Welding Machine 380V 415V 220V High Stability

SS Rolled Brick Force Wire Mesh Welding Machine 380V 415V 220V High Stability
SS Rolled Brick Force Wire Mesh Welding Machine 380V 415V 220V High Stability SS Rolled Brick Force Wire Mesh Welding Machine 380V 415V 220V High Stability

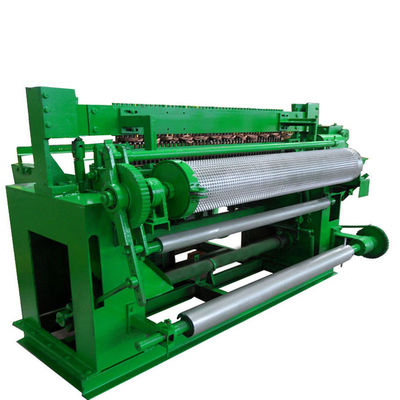

Large Image :  SS Rolled Brick Force Wire Mesh Welding Machine 380V 415V 220V High Stability

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JL
Certification: IATF16949 2016
Model Number: ZWJ--1300A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detailed Product Description
Place Of Origin: Hebei, China (Mainland) Brand Name: JingLian
Power Capacity: 100KVA Voltage: 380V 415V 220V
Type: Automatic
High Light:

automatic wire mesh welding machine

,

weld mesh making machine

Stainless Steel Welded Wire Mesh Machine for The Rolled Wire Mesh





Features





High stability, low noise, automatic straightening and wire feed, used for welding screen mesh with large wire diameter.



Mesh(mm) 25.4-152.4 (1"-6")
With(mm) 1219.2,1524,1828.8 (48", 60", 72")
Wire Diameter(mm) Dia.1.07-Dia.2 ( BWG19-BWG14)
Production Length per Roll(mm) 91.4m (300')
Welding Rate 45 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3350x1800x1400


Features



Round wire feed, rapid wire feed, low noise, more stability, power saving, used for welding welded wire mesh with wire diameter of 0.7-1.07 and mesh of 1/4"-1/2"



Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 1219.2-1828.8 (48"-60")
Wire Diameter(mm) Dia.0.74-Dia.1.07 ( BWG22-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 48( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3050x1900x1750


Features



Round wire feed, rapid wire feed, low noise, more stability, power saving, used for welding welded wire mesh with wire diameter of 0.45 and mesh of 1/4'-1/2'.



Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 914.4-1219.2 (12"-48")
Wire Diameter(mm) Dia.0.45-Dia.1.07 ( BWG25-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 75 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx4
Outside Dimensions(mm) 2350x1820x1700
