Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine

Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine
Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine

Large Image :  Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.4m Width: 3000mm
Speed: 110r/min Wire Diameter: 0.045mm
Raw Material: Stainless Wire Mesh Size: 250 Meshes
High Light:

1300mm wire mesh weaving machine

,

cnc wire mesh weaving machine

,

shuttless wire mesh weaving machine

Shuttless CNC-control Semi-Autmatic 1300mm Width Stainless Steel Weaving Loom Wire Mesh Weaving Machine



1 , Shutttless weaving machine Main features


1 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
2, It works automatic stopping and displaying functions at any warp broken or weft broken.
3, The whole machine works stably in a low center of gravity and a low level of noise.
4, Rational design,simple construction,easy to operate and maintain.

5, CNC controlled talking up. weft wire feeding, Rolling Up CNC control



2 :Instruction of the stainless steel wire mesh loom



Machine Type ZWJ-1300 ZWJ-1600 ZWJ-2100
Mesh Size 150meshes 150meshes 150meshes
Wire diameter 0.035mm  0.035mm 0.035mm
Feeding Weft Wire Speed 75r/min 75r/min 75r/min



3: The application of  stainless wire mesh



the wire mesh could be mosquto wire mesh, windown screen mesh , protective wire mesh

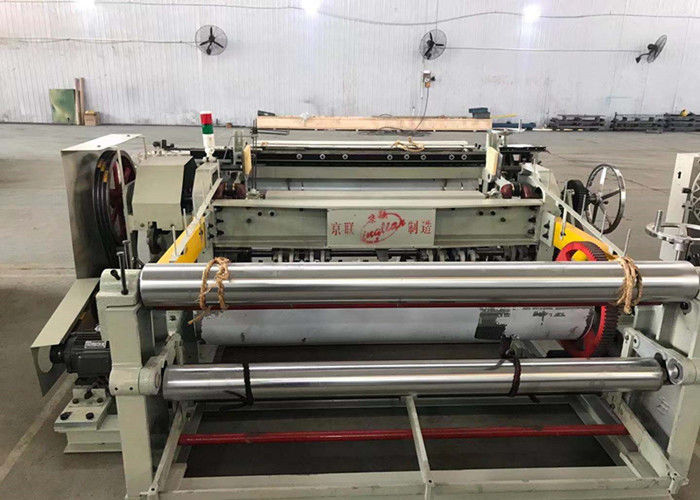

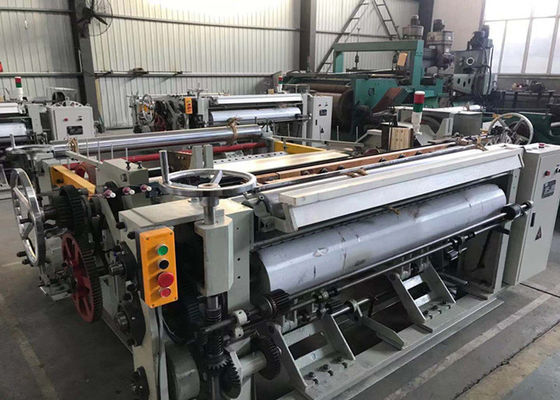

4 :The details of the stainless steel wire mesh weaving machine





Shuttless Cnc Control 1300mm Wire Mesh Weaving Machine 0
