Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen

Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen
Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen

Large Image :  Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Condition: New Machine Type: Automatic
Density: 4 -- 400 Color: Requirement
Warranty: 1 Year After Sales Service: Engineers Available To Service Overseas
Weave Type: Plain Woven Yarn Type:: E-Glass
High Light:

window screen making equipment

,

fiberglass weaving machine

Filter Grade Stainless Steel Crimped Wire Mesh Weaving Machine





Summary



Plastic window screening weaving machines is the equipment of process glass fiber, Plastic vinyl material, woven plastic window screening, Fiberglass window screening, Invisible window screening. this machine can produce 1m, 1.2 m, 1.5m, 1.8m, 2.0m, 2.3m,2.8 m,3.0m,3.3m,3.5m kinds of width specifications; mesh density is adjustable between 8 and 45 ; we produced the ZWJ plastic window screening weaving machines with the characters of high yield,high speed,low noise,low power,mesh accurate and good stability.A machine can produce two or more network products of different widths at the same time.

The use of plastic screens:

High-grade office buildings, residential and various buildings, farms, orchards, etc., are insects, mosquitoes, the best protection products



Main features





1

It is highly adaptive to metal wires.

2

It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.

3

The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.

4

It works automatic stopping and displaying functions at any warp broken or weft broken.

5

The whole machine works stably in a low center of gravity and a low level of noise.

6

Mesh uniform, high strength, resistance to traction



The technical parameters are shown in the Table below.


Type Max width of mesh Mesh density Speed of crankshaft Power of motor Overall weight
ZWJ-1300 1300mm 10-350mesh 73rpm 2.2kw 6000kg
ZWJ-1600 1600mm 10-350mesh 73rpm 2.2kw
ZWJ-2000 2000mm 10-350mesh 53rpm 5.5kw

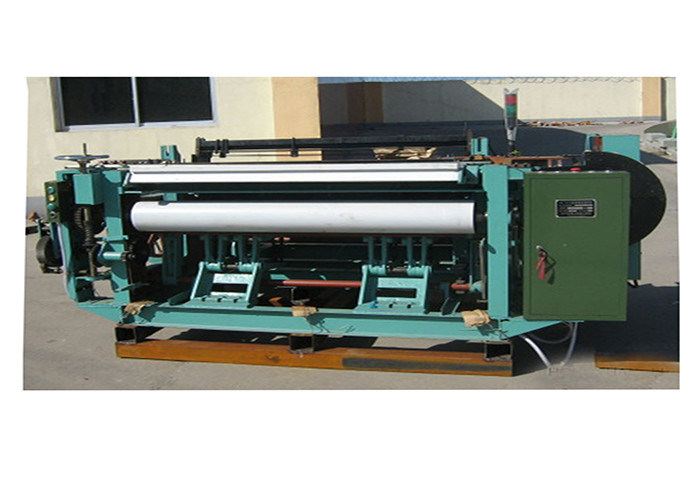

Machine picture



Shuttleless Loom Weaving Wire Mesh Equipment For Mosquito Mesh Window Screen 0
