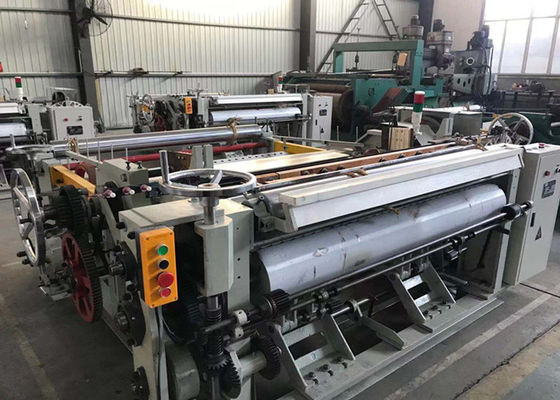

Semi Automatic Cnc 1600mm Shuttleless Weaving Machine

Semi Automatic Cnc 1600mm Shuttleless Weaving Machine
Semi Automatic Cnc 1600mm Shuttleless Weaving Machine Semi Automatic Cnc 1600mm Shuttleless Weaving Machine

Large Image :  Semi Automatic Cnc 1600mm Shuttleless Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2005

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.4m Width: 2000mm
Speed: 90r/min Wire Diameter: 0.025mm
Raw Material: SS Wire Mesh Size: 350 Meshes
High Light:

1600mm shuttleless weaving machine

,

cnc shuttleless weaving machine

,

semi automatic shuttleless weaving machine

ECO friendly Semi-Automatic CNC Controled 1600mm Width Stainless Steel Weaving Loom Wire Mesh Loom



1,The application of stainless wire mesh



The stainles wire mesh would be usd in many filter industry like oil , food , chemical industry ,

Also the wire mesh could be mosquto wire mesh, windown screen mesh , filter wire mesh



2, SS Wire Mesh Weaving Loom Main features



1 Adjustable weaving speed

2, Fully automatic and semi-automatic. Machinery machine
3 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4 It works automatic stopping and displaying functions at any warp broken or weft broken.





2,The application of stainless wire mesh



The stainles wire mesh would be usd in many filter industry like oil , food , chemical industry ,

Also the wire mesh could be mosquto wire mesh, windown screen mesh , filter screen,





2 :Instruction of the stainless steel wire mesh loom



Machine Type ZWJ-1300 ZWJ-1600 ZWJ-2100
Mesh Size 240meshes 240 meshes 240meshes
Wire diameter 0.045mm  0.045mm 0.045mm
Feeding Weft Wire Speed 90r/min 90r/min 90r/min

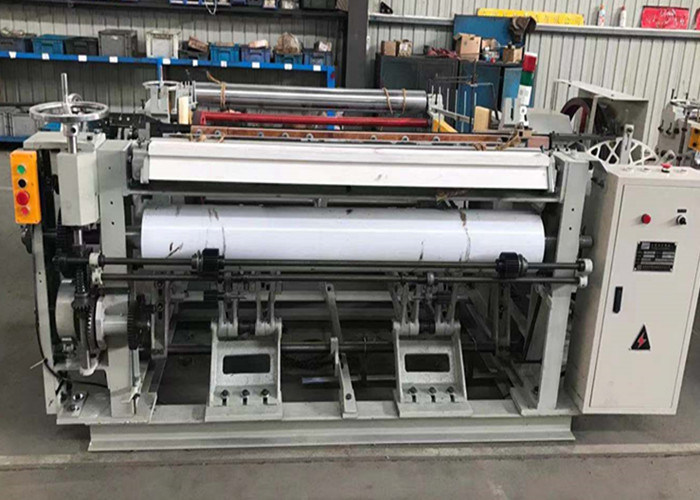

4 :The details of the stainless steel wire mesh weaving machine





Semi Automatic Cnc 1600mm Shuttleless Weaving Machine 0
