Professional Shuttleless Automatic Weaving Machine / Wire Mesh Loom Machine

Professional Shuttleless Automatic Weaving Machine / Wire Mesh Loom Machine
Professional Shuttleless Automatic Weaving Machine / Wire Mesh Loom Machine Professional Shuttleless Automatic Weaving Machine / Wire Mesh Loom Machine

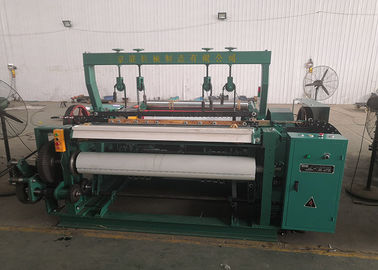

Large Image :  Professional Shuttleless Automatic Weaving Machine / Wire Mesh Loom Machine

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Model Number: ZWJ--1300 Type: Fully Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Weight: 2t
Wire Diameter: 0.4-1.0mm Voltage: 380V
High Light:

automatic weaving machine

,

wire mesh equipment

Automatic Shuttleless Weaving Machine manufacturer/ Automatic Wire Mesh Machine Equipment Supplier in China





1, Shuttleless weaving machine

Characteristics:1,,Adaptability to metal wires:Adapt to various imported and domestic metal wires.



2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.



3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high-grade in the standard of GB/T 5330-2003.



4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.





Item

Weaving Width

(mm)

Wire Diameter

(mm)

Mesh

Size

(mm)

Power

(v)

Weaving

Speed (T/Min)

Weave

Type

Weight

(KG)

Outsize

(mm)

1300B 1300 0.025-0.3 40-400

380V

2.2KW

75-78 Plain and Twill 3000 2600x2800x1200
1300D 1300 0.1-0.4 20-80

380V

4KW

53 Plain and Twill 3400 2569x3535x1849
1300Q 1300 0.1-0.6 10-40 380V 2.2KW 53 Plain 3500 2569x3535x1849
1300QD 1300 0.8-1.0 4-40

380V

5.5-7.5KW

53 Plain 9000

2600x2800x1200
