Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh

Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh
Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh

Large Image :  Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Color: According To Your Requirements Density: 100 -- 400
Wire Net Maximum Breadth: 1300 Mm ,1600 Mm, 1800 Mm , 2000 Mm Power(w): 2.2KW
Weight: 1.5-2.5tons, After Sales Service: Engineers Available To Service Overseas
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

Plain / Twill Woven Shuttleless Weaving Machine For 100-400 Mesh High Density Mesh



Summary



This model is mainly used to produce high mesh metal mesh, which is improved on the basis of other models.B-type shuttleless weaving machine is suitable for the weaving of small wire diameter and high mesh. The diameter of the wire can be woven from 0.025mm to 0.200mm.



Main features

  1. It works automatic stopping and displaying functions at any warp broken or weft broken.
  2. The whole machine works stably in a low center of gravity and a low level of noise.

  3. It is highly adaptive to metal wires.

  4. The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright

The technical parameters



Item

Unit

Reference value

Wire net maximum breadth

mm

1300mm,1600mm,1800mm,2000mm,2600mm

Density

mesh/inch

100--200

Crankshaft rotating speed

r/min

60

Brake moto Power

KW 2.2, / 5.5
Brake moto Voltage V 380
Brake moto Rotating speed

r/min

1420

External dimension

mm

2600×2800×1200  / 2630*3100*1360

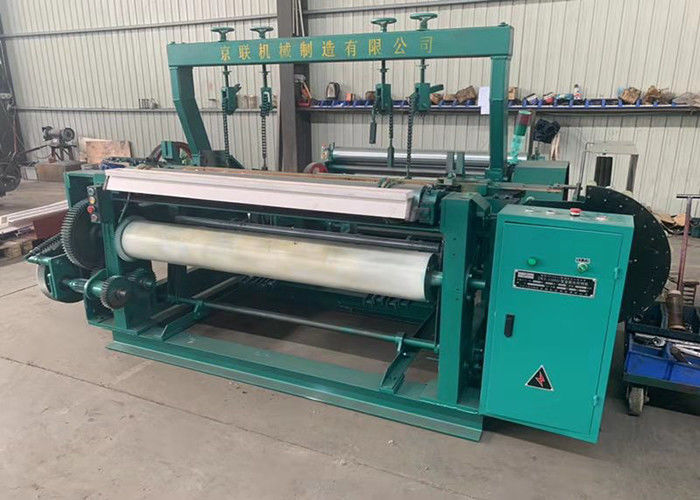

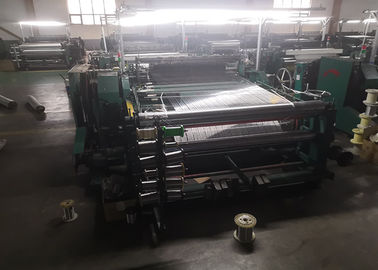

Machine picture



Plain / Twill Woven Shuttleless Weaving Machine For 100-400 High Density Mesh 0
