Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty

Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty
Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty

Large Image :  Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ-1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Type: Fully Automatic Welding Speed: 75times/minute
After-sales Service Provided: Engineers Available To Service Machinery Overseas Wire Diameter: 0.025-0.4 Mm
Warranty: 1 Year Weight: 2-5T
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

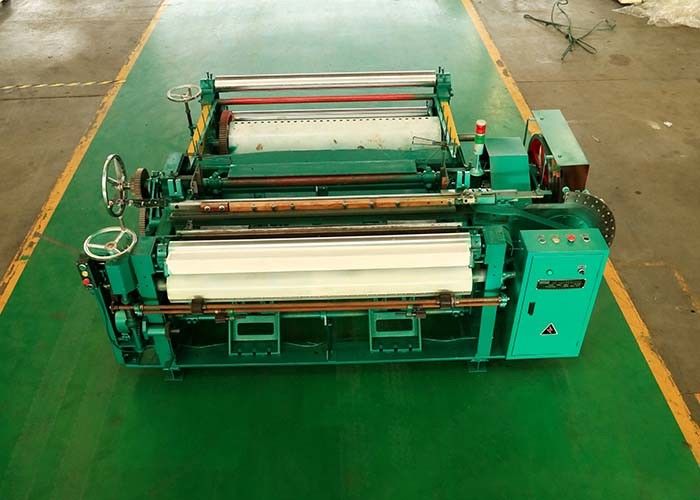

Plain Twill Woven Light-duty Wire Mesh Weaving Machine ZWJ-1300B1


The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.

The wire mesh machine producing the wire mesh which is highly adaptive to metal wires,It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern and tappered contrast microgroove

The wire machine works automatic stopping and displaying functions at any warp broken or weft broken, The whole machine works stable in a low center of gravity and a low level of noise.

The type of ZWJ-1300B weaving machine is an improvement based on type 1300A weaving machine to satisfy the user's requirements,as some of the parts are rebuilted,Type B machine is especially improved in the rigidity when comparing with typeA machinem the ths it is more suitbale for weaving with wires in larger diameter.



Product Details:

Model Number: ZWJ--1300B1 Power(W): 2.2KW
Dimension(L*W*H): 2.6m*2.8m*1.4m Weight: 2700KG
Wire Diameter: 0.025--0.2 mm Mesh Width: 1300mm
Mesh Size: 40-400mehs/inch Beating-up Frequency: 70-120 r/min
Warranty: 1 Years Color: Green or Requirement
Certification: ISO9001 Condition: New
Production Capacity: 100sets / Month Place of Origin: Hebei, China (Mainland)
Packaging Details: wooden case Port: Xingang Tianjin
After-sales Service Provided: Engineers Available To Service Overseas

Description:Zwj1300B1 is a modification of 1300B, which is mainly related to lubrication and acceleration. The improvement of lubrication is based on the serious situation that the user's on-site lubrication and refueling work is serious, the on-site oil pollution is serious, and the national environmental protection form is unprecedentedly serious. In order to improve the above situation, the improvement is mainly to reduce the lubrication point, and the bearing is mainly a non-lubricating mechanism,acceleration is to increase the efficiency of the machine model to 70 times per minute. In the case that the machine model structure remains unchanged, by replacing some components, the speed of 120 times per minute can be achieved, thereby greatly improving production efficiency and reducing labor costs.



Main features:

1.It is highly adaptive to metal wires.

2.It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.

3.The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.

4.It works automatic stopping and displaying functions at any warp broken or weft broken.

5.The whole machine works stably in a low center of gravity and a low level of noise.



Main machine technical parameters of The Light-duty Wire Mesh Weaving Machine:



TYPE ZWJ-1300B1 ZWJ-1600B1 ZWJ-2100B1
MESH SIZE 40-400mesh/inch 40-400mesh/inch 40-400mesh/inch
WIRE DIAMETER 0.025-0.200mm 0.025-0.200mm 0.025-0.200mm
BEATING-UP FREQUENCY 70-120 r/min 70-120 r/min 70-120 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 2.6m*2.8m*1.4m 2.6m*3.1m*1.4m 2.6m*3.6m*1.4m



Main machine technical parameters of 1300 Series Wire Mesh Weaving Machine Manufacturer

Item Weaving Width(mm) Wire Diameter(mm) MeshSize(mm) Power(v) WeavingSpeed (T/Min) WeaveType
1300B 1300 0.025-0.200 40-400 380V2.2KW 75-78 Plain and Twill
1300D 1300 0.10-0.35 20-140 380V4KW 75-80 Plain and Twill
1300HD 1300 0.1-0.6 10-40 380V 2.2KW 65-80 Plain



Our Services:

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.



Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty 0Plain Twill Woven Light - Duty Automatic Wire Mesh Machine 1 Year Warranty 1
