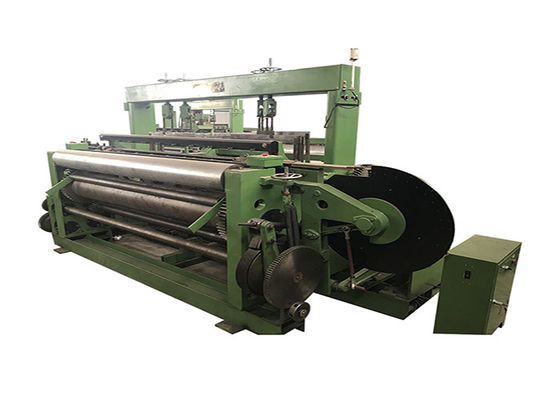

Middle Heavy Type Shuttleless Weaving Machine With For Stainless Steel Wire

Middle Heavy Type  Shuttleless Weaving Machine With For Stainless Steel Wire
Middle Heavy Type  Shuttleless Weaving Machine With For Stainless Steel Wire Middle Heavy Type  Shuttleless Weaving Machine With For Stainless Steel Wire

Large Image :  Middle Heavy Type Shuttleless Weaving Machine With For Stainless Steel Wire

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1800B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Color: Green And According To Your Requirements Mesh Size: 4--20 Mesh/inch
Wire Diameter: 0.4-1mm Width: 1800 Mm
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

wire mesh equipment

,

fiberglass weaving machine

Middle-Heavy-Type Shuttleless Weaving Machine With For Stainless Steel Wire





ZWJ-1800 Middle-Heavy-Type Metal Wire Mesh Weaving Machine

Characteristic and application: This type of machine is up to the international advanced standard. With leading weft shuttleless-straightaway, feeding warp and furling mechanically-automatically, automatic stop weaving upon breaking of wire. The metal wire mesh by this type of weaving machine is widely used in filtering of liquid and gas and sieving of solid particle in petroleum, chemcial industry, equipment and machinery, military industry, aerospace etc.

.Main characteristics:

  1. Rational design, simple constrution, easy to operate and maintenance.
  2. It works automatic stopping and displaying functions at any warp broken or weft broken.
  3. Lower centre of the gravity, good stablility, low noise and watt consumption, high efficiency
  4. Large adjust range: The tinsel gauzes can be weaved out by the machine of not only square holes from 40 to 400 mesh but also special kinds up to 2600mesh, such as plain weave, taper weave. Zooz weave and taper contrast high thickness weve etc and have advantage over ones by other machine.

Main technical data:



Width of fabric to 1800mm
Aperture 4-20mesh(square holes gauze);2600mesh(special gauze)
Crank shaft rotating speed 40rpm
Power of motor 5.5KW
Rotating speed of motor 1450rpm
Total weigh 6000kg



Middle Heavy Type  Shuttleless Weaving Machine With For Stainless Steel Wire 0
