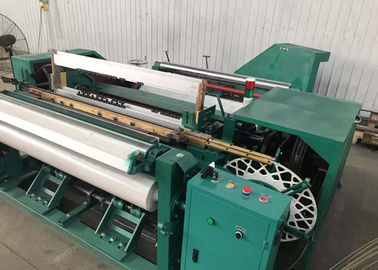

Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density

Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density
Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density

Large Image :  Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: JWJ-029
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Width: 1600 Mm Type: Shuttleless Weaving
Motor Power: 2.2KW Density: 20-400 Mesh / Inch
Wire Diameter: 0.025-1 Mm Rotating Speed: 65-75 R / Min
High Light:

window screen making equipment

,

fiberglass weaving machine

Light-Duty Weaving Type Shuttle Loom Machine Window Screen Machine For Windown Screen Weaving


The Intrudution Of Jinglian Machinery

Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market,During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.
The weaving machine is separately packed in four parts totally
The main part includes the main driving, Weft beating-up and take up unit, the front part of the weaving machine
The side part includs the left and right warp feeding stays
The other part includs the warp feeding unit, the rear part of the weaving machine.
Another part includs the channel steel of the base,
After the weaving machine is unpaked, the above parts shall be intergrated correctly as per the sketch drawing

Specifications

1, 1300B 1300D light-duty, heavy tudy type
2, B type, 40-400mesh,
3, D type, 20-140mesh
4, Q type, 20-130mesh

Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.
2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.
3, Lower center of gravity,good stability,low noise and energy consumption,high effciency.
4, Rational design,simple construction,easy to operate and maintain.

Table of Technical Parameters



Model


Width


Opening density


Wire diameter


Rotating speed of crank shaft


Motor power

ZWJ1300B1300MM40-4000.025-0.265-752.2kw
ZWJ1300D1300MM20-1400.35-0.1065-752.2kw
ZWJ1600B1600MM40-4000.025-0.2065-752.2kw
ZWJ1600D1600MM20-1400.35-0.1065-752.2kw
ZWJ1600Q1300MM20-1300.45-0.165-752.2KW
ZWJ2600heavy duty type2000MM4-200.41.045-555.5kw




TYPESKZWJ-1300SKZWJ-1600
MESH SIZE

Plain weave : 8-100 mesh/inch
Twill weave : 40-350 mesh/inch


Plain weave : 8-100 mesh/inch
Twill weave : 40-350 mesh/inch


WIRE DIAMETER0.1 – 0.8 mm0.1 – 0.8 mm
BEATING-UP FREQUENCY60-75r/min60-75r/min
MESH WIDTH1300mm1650mm
MOTOR POWER2.2kw2.2kw
OVERALL SIZE2.6m*3.4m*1.4m2.6m*3.7m*1.4m
Weight3.5t3.9t

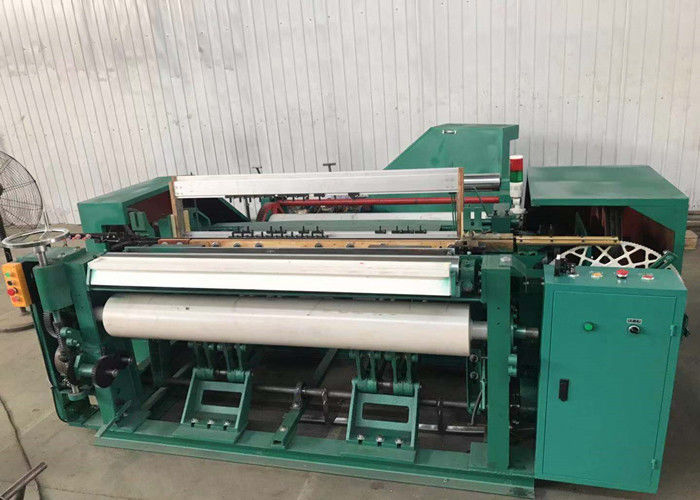

The Picture of the Wire Mesh Weaving Machine

Light Duty Shuttleless Weaving Plastic Mesh Machine 20-400 Mesh / Inch Density 0
