Horizontal Stainless Steel Wire Mesh Machine , Plain Woven Wire Mesh Equipment

Horizontal Stainless Steel Wire Mesh Machine , Plain Woven Wire Mesh Equipment
Horizontal Stainless Steel Wire Mesh Machine , Plain Woven Wire Mesh Equipment Horizontal Stainless Steel Wire Mesh Machine , Plain Woven Wire Mesh Equipment

Large Image :  Horizontal Stainless Steel Wire Mesh Machine , Plain Woven Wire Mesh Equipment

Product Details:
Place of Origin: Hebei,China
Brand Name: JingLian
Certification: CE
Model Number: ZWJ---1300 D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: nude packing
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detailed Product Description
Condition: New Woven Type: Plain, Tilted,bead Pattern ,
Raw Material: Stainless Steel Wire Width: 1300 Mm,1600 Mm,1800mm, 2000mm,2200mm,2400mm,2600mm
Power(w): 2.2KW Weight: 1.5-2.5tons
High Light:

wire mesh equipment

,

fiberglass weaving machine

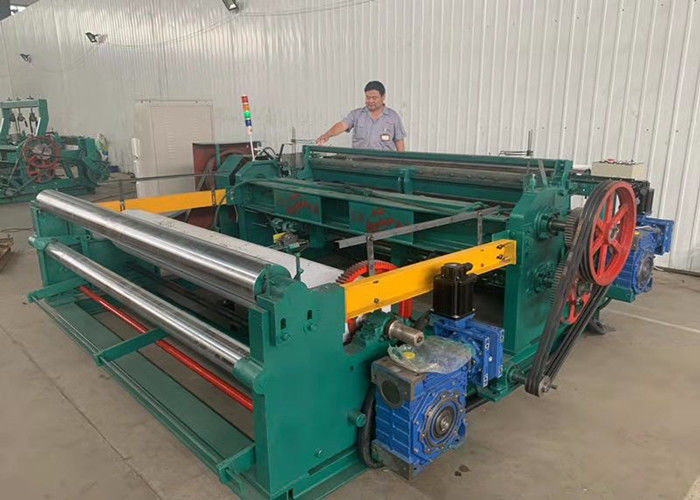

Fully Automatic Light-duty Type Shuttleless Weaving Machine For 40-400 Mesh



Our wire mesh machines are divided into four categories. The four models have the same appearance. They are divided into double weave and four weaves. They are divided into two types: suspension and arch.
All four models are automatically sent, no shuttle weft insertion, active coiling, passive cutting, automatic brake braking and shutdown alarm. Mechanical properties are stable and reliable. The woven range is from 1000mm to 2600mm wide mesh surface, the wire diameter ranges from 0.025mm to 1.0mm, and the mesh size is from 4 mesh to 400 mesh. The mesh number is the number of meshes contained in one inch.



Features:



1. single electromotor driving

2. High adaptability to metal wire.
3. It adopts shuttleless straight line weft insertion weaving and mechanical automatic let-off and take-up, has small opening amount and smooth wire side, can weave microgroove mesh without bright spot or bright channel and produce high-grade screen mesh, and conforms to national standard.
4. Low center of gravity, good stability, low noise, less energy consumption, high efficiency

5. We have 15 years of production experience




product information



type max width of mesh mesh density speed of crankshaft power of motor overall weight
ZWJ-1300 1300mm

20-140

40-400

75rpm 2.2kw 2500kg
ZWJ-1600 1600mm

20-140

40-400

70rpm 2.2kw 2600kg
ZWJ-2000 2000mm

20-140

40-400

60rpm 5.5kw 3000kg
