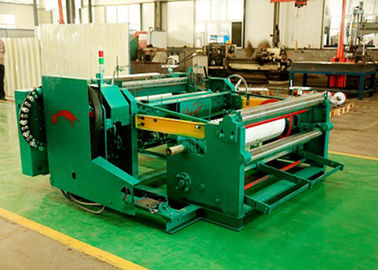

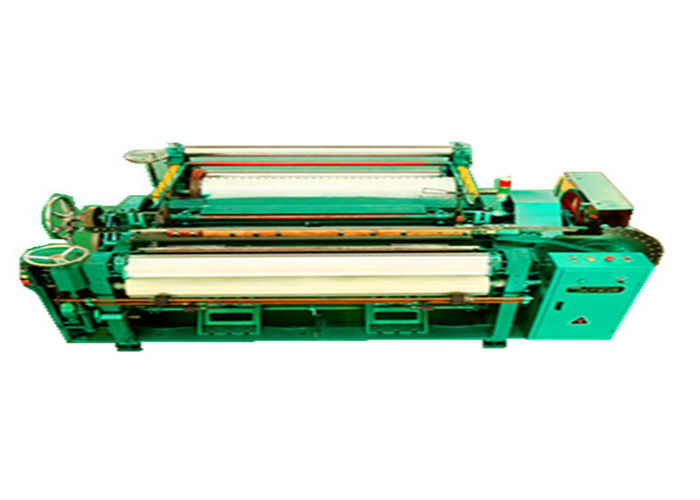

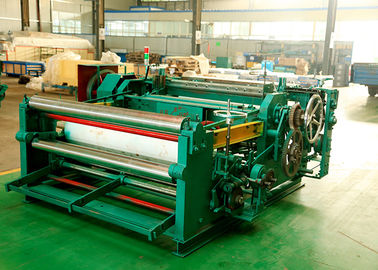

High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique

High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique
High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique

Large Image :  High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Name: Wire Mesh Weaving Machine Color: Green
Type: Fully Automatic Wire Diameter: 0.025-0.2
Voltage: 380V After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

wire mesh making machine

,

metal mesh machine

High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique





The machine introduced


The  mesh weaving machine is a new type developed by our company in response to the market demand. It adopts flexible rapier linear weft insertion, mechanical intermittent automatic feeding, active coiling, treadmill, and broken wire. Stop. It has the advantages of large beating force, strong bearing capacity, high precision, flat mesh surface, faster speed and various lines. It can weave all kinds of metal mesh and polyester mesh.





Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.





The technical parameters are shown in the Table below.


Item Unit Reference value
Wire net maximum breadth mm 1300
Density mm 0.45~0.036
Crankshaft rotating speed r/min 65~90
Brake moto Power KW 2.2
Brake moto Voltage V 380
Brake moto Rotating speed r/min 1420
External dimension mm

2600×2800×1200



High Speed Wire Mesh Weaving Machine Adopts Synchronous Control Technique 0
