High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave

High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave
High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave

Large Image :  High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Keywords: Wire Mesh Weaving Machine Type: Fully Automatic
Wire Diameter: 0.025-0.2 Voltage: 380V
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

wire mesh making machine

,

metal mesh machine

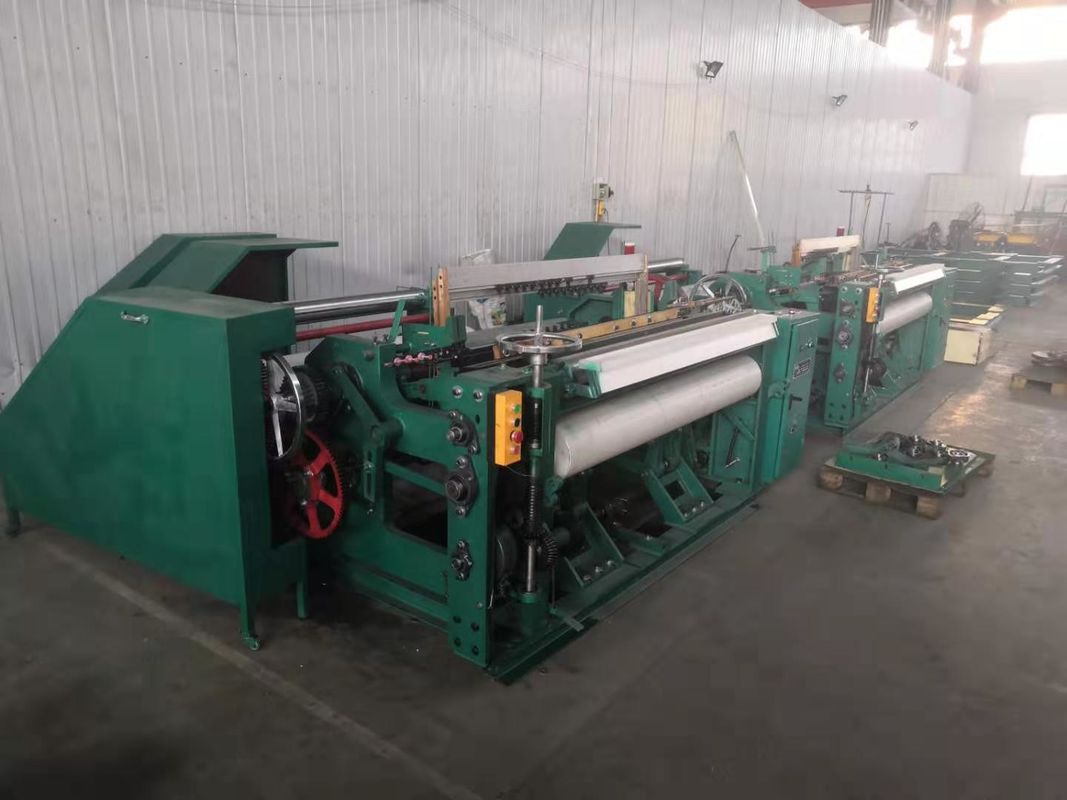

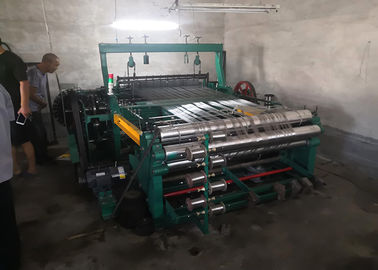

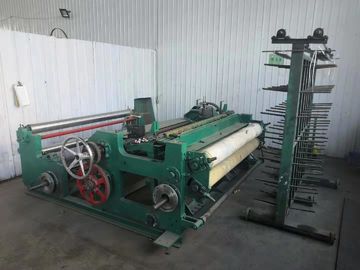

High Speed Automatic Wire Mesh Weaving Machine For Twill /Plain Weave





The machine introduced

The machine has been improved on other models, with faster speed and higher efficiency. It is mainly used for
plain weave and twill nets. It has large operation capacity and load carrying capacity, large number of weaving threads, wide density range and speed compared to other models. ''
There are obvious advantages such as improvement. The product has smooth surface, good combination ability and various production lines, and is widely used in petroleum, petrochemical, machinery, ''
mining and other fields
Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3.Fast weaving

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.





The technical parameters are shown in the Table below.


Item Unit Reference value
Wire net maximum breadth mm 2600
Density mm 0.025~1
Crankshaft rotating speed r/min 65~90
Brake moto Power KW 2.2/5.5
Brake moto Voltage V 380
Brake moto Rotating speed r/min 1420
External dimension mm

2600×2800×1200







High Speed Automatic Wire Mesh Making Machine For Twill / Plain Weave 0
