High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm

High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm
High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm

Large Image :  High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Woven Type: Plain,Twill Mesh Size: 20--400 Mesh/inch
Width: 1300mm Warranty: 1 Year
Speed: High Speed
High Light:

wire mesh equipment

,

industrial weaving machine

High Speed Automatic Shuttleless Weaving Machine with wire maximum breadth 1300 mm For Twill /Plain Weave





Tinsel Gauze Weaving Machine ZWJ-1300

The ZWJ-1300 wire mesh weaving machine is made of advanced technology. It fills the gap in China without gauze weaving equipment and can replace imported gauze. Wire mesh woven by machines is widely used for liquid or gas filtration and solids screening in the petroleum, chemical, mechanical, military, aerospace and other industrial sectors.

.Main characteristics:



I. Adaptability to tinsel: Adapt to variable import and domestic tinsel.
II. Large adjust range: The tinsel gauzes can be weaved out by the machine of not only square holes from 40 to 400 mesh but also special kinds up to 2600mesh, such as plain weave, taper weave. Zooz weave and taper contrast high thickness weve etc and have advantage over ones by other machine.

III. With leading weft shuttleless-straightaway, feeding warp and furling mechanically-automatically and small opening,the gauze surface is smooth, without any bright spot and bright trace on the thick ripple gauze and without any defects. The machine can make high level tinsel fabric products that satisfy the standard of GB5330-85. Its accurancy is up to the second degree.

IV. Lower centre of the gravity, good stablility, low noise and watt consumption, high efficiency.

V. Rational design, simple constrution, easy to operate and maintenance.



Main technical data:


I. Width of fabric: to 1300mm
II.Aperture: 40-400mesh(square holes gauze);2600mesh(special gauze)
III. Crank shaft rotating speed: 72rpm
IV. Power of motor: 1.5KW; Rotating speed of motor: 1450rpm
V.Total weight: 2700kg
VI. Total measurement: 2600x2800x1200mm

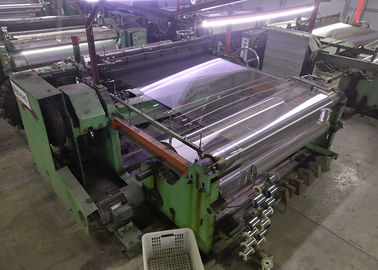

High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm 0

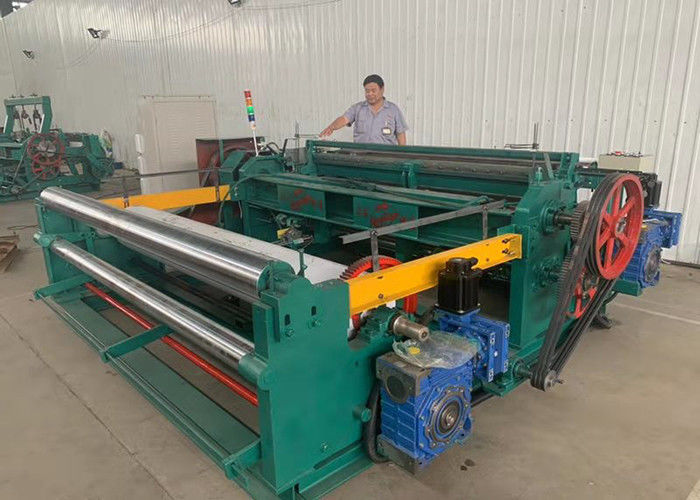

High Speed Auto Industrial Weaving Machine With Wire Maximum Breadth 1300mm 1
