Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise

Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise
Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise

Large Image :  Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--2600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Model NO: ZWJ--1300 Trademark: JingLian
The Maximal Width Of Weaving: 2600mm Power: 2.2kw
Speed: 65-75 Times/Min Weight: 2.5 Tons
High Light:

window screen making equipment

,

mosquito net making machine

Window Screen Machine, Plastic Mesh Machine, Fiberglass Mesh Machine ,Nylon Mesh Machine





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market,During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.



Fiberglass window screen mesh machine



The glass fiber square mesh weaving machine produced by our factory uses advanced technology to weave the forming components, with high machine capacity and better mesh quality. The machine is designed reasonably, and is controlled by computer, engine and electric motor. It completes the drawing and rolling network and automatically starts.



Characteristics:



a) This fiberglass mesh weaving machine model is our latest development. It is designed at 2600mm width,as so, it can produce two rollers , every at 1m. And the production effeciency will

be greately improved . Another the 2000mm width mesh will be cut automaticly along with the weaving process.

b) Another after this new improvement, the cross fiberglass feeding will be more faster.

c) For some key and important part ,like as sword scalp plate and needle row , we will exactly make sure every manufacturing procedure to required quality.



machine advantage:

  1. this machine has the characteristic of high quality,high speed,low noise,low power,mesh accurate and good stability.
  2. A worker can operate 3-6 machines.
  3. A machine can produce two or more of the network products of different widths at the same time.

The main parameter :



The width 2600mm
rotate speed 75 R.P.M
The power 2.2kw
Outsize 4850x1827x2120mm
day output 800-1400m2/piece
electricity control control box
the total machine weight 2500KG

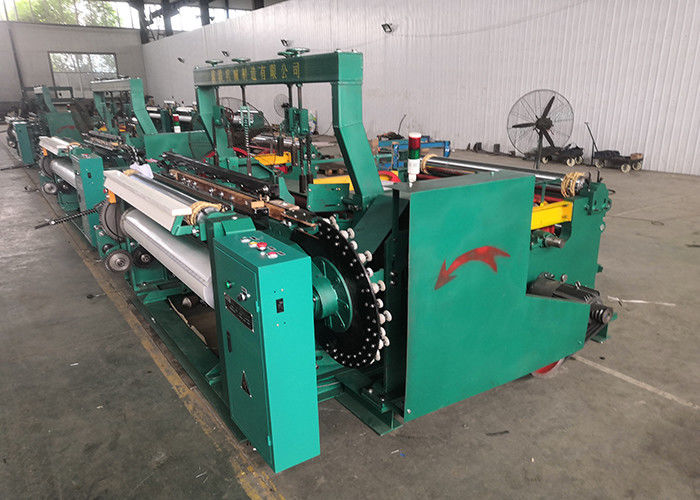

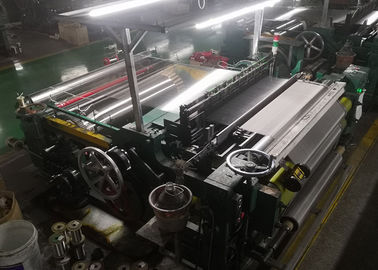

The Picture of the Wire Mesh Weaving Machine



Heavy Duty Horizontal Plastic Mesh Machine / Fiberglass Mesh Machine Low Noise 0
