Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine

Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine
Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine

Large Image :  Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Model Number: JWJ-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 15-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.4m Width: 2.8m
Speed: 80 R/min Wire Diameter: 0.035
Raw Material: Stainless Wire Mesh Size: 300 Meshes
High Light:

200 mesh loom machine

,

1300mm loom machine

,

stainless steel loom machine

Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine





1 :Instruction of the stainless steel wire mesh weaving machine



Machine Type ZWJ-1300D ZWJ-1600D ZWJ-2100D
Mesh Size 300meshes 300meshes 300meshes
Wire diameter 0.035mm  0.035mm 0.035mm
Feeding Weft Wire Speed 80r/min 80r/min 80r/min



2 :Characteristics and usage



The machine has the international level, it can instead of the imported machine. It adopted non shuttless lead the woof, and send longitude automatic by the machine, snip passively. The mesh that weave by the machine is widely used to filtrate the liquid and gas and soil grain in petroleum, chemical, machinery, war industry and spaceflight industry.

Single electromotor driving

1.Automatic compensation of winding and warp feeding

2.Automatic pause and alarming of weft and warp snapping

3.Be propitious to soft ferrous metal, stainless steel, flexible brass wires , galvanized wire and organic fibre



3 :The stainless steel wire mesh type:



Plian weave wire mesh

Plian Dutch weave wire mesh

Twill Dutch weave wire mesh



4 the application of stainless wire mesh machine



There high quality wire clothes are used worldwide as square weave meshes for sieving and sizing, as stainless steel wire cloth for screen printing, as filter media and laminates as well as support meshes for a wide range of applications,

Fabricated products are utilised in almost all areas of industry, including chemical, pharmaceuticals, glass,ceramics, plastics, mechanical engineering, paper

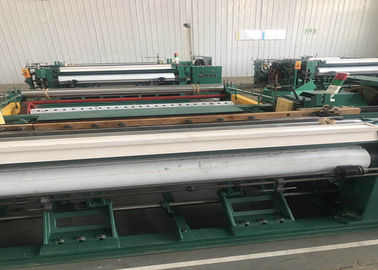

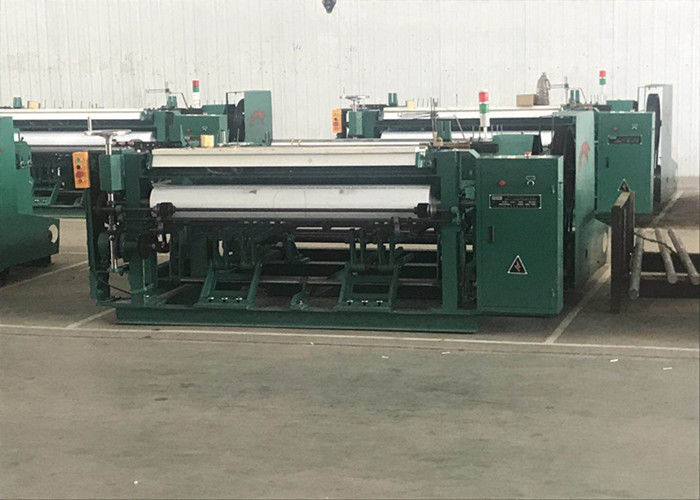

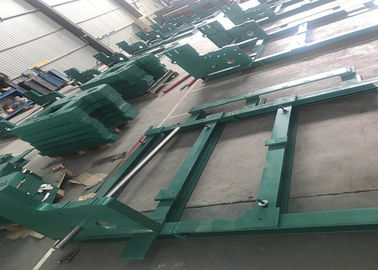

5: The details of the stainless steel wire mesh weaving machine



Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine 0



Heavy-duty Fully-automatic 1300mm width 200 meshes stainless steel loom machine 1
