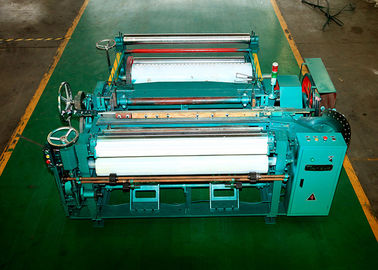

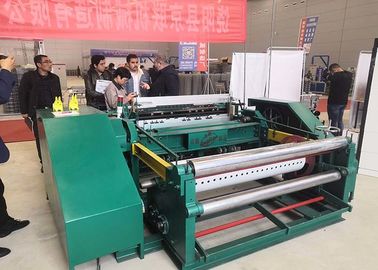

Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise

Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise
Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise

Large Image :  Harness Threading Metal Mesh Machine For 0.10-0.35mm Low Noise

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ-1600D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Product Name: Wire Mesh Weaving Machine Welding Speed: 75times/minute
Wire Diameter: 0.10-0.45 Mm Power: 2.2KW
Certification: ISO,ISO9001-2008;CE Dimensions: 3.1m*3.4m*1.8m
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

 0.10-0.35mm Low Noise Harness threading metal wire net weaving machine ZWJ-1600HD



Features and application: This machine has international advanced level and can replace import. It adopts shuttle free linear weft insertion, mechanical automatic diameter feeding, passive cutting, diameter breaking and weft breaking automatic stop display. It shrinks and weaves metal wire mesh, which is widely used in liquid, gas filtration and solid particle screening in petroleum, chemical, mechanical, military, aerospace and other industrial sectors



Product Details:

Model Number: ZWJ--1600HD Power(W): 2.2KW
Dimension(L*W*H): 3.1m*3.4m*1.8m Wire Diameter: 0.10-0.45mm
Mesh Width: 1600mm Mesh Size: 20-130mesh/inch
Beating-up Frequency: 70r/min Warranty: 1 Years
Color: Requirement Condition: New
Production Capacity: 100sets / Month Place of Origin: Hebei, China (Mainland)
Packaging Details: Wooden Case Port: Xingang Tianjin
After-sales Service Provided: Engineers Available To Service Overseas

Description:

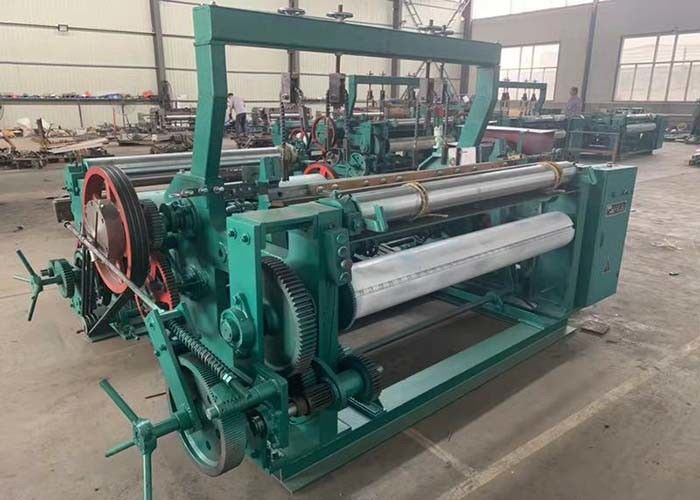

ZWJ-1600HD Harness threading metal wire net weaving machine is a deformed product of ZWJ-1600D type metal wire net weaving machine. It is a new type of machine which has been greatly modified according to the needs of customers. The rigidity and strength of the machine are greatly improved. The feeding mechanism of the coiling net adopts the pawl mechanism, the diameter of the ratchet wheel is large, and the use is more reliable. It is suitable for 0.10-0.45mm diameter, 20-130 mesh smooth standard wire mesh weaving. It is the ideal wire mesh weaving machine for the majority of users. The main differences between ZWJ-1600HD and ZWJ-1600D mesh weaving machine are as follows: 1. The body is longer, the base channel steel is larger, the rigidity is increased, and the stability is good. 2. Gear Drive. 3. The web winding mechanism is driven by the crankshaft to adjust the offset plate, and is ratcheted by the pull rod and pawl. More reliable performance.



Characteristics:

1.It is highly adaptive to metal wires.

2. It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.

3. The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.

4. It works automatic stopping and displaying functions at any warp broken or weft broken.

5. The whole machine works stably in a low center of gravity and a low level of noise.



The Application of the Wire Mesh Weaving Machine

Stainless Steel Wire mesh

2.Plain weave wire mesh

3.Dutch wire mesh

4.Microgroove net

5.Bead weaving wire mesh

6.Stainless steel wire mesh

7.Mosquito-protection wire mesh

8.Filter wire mesh



Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:



TYPE ZWJ-1300HD ZWJ-1600HD ZWJ-2100HD
MESH SIZE 20-130mesh/inch 20-130mesh/inch 20-130mesh/inch
WIRE DIAMETER 0.10-0.45mm 0.10-0.45mm 0.10-0.45mm
BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 3.1m*3.1m*1.8m 3.1m*3.4m*1.8m 3.1m*3.9m*1.8m





Main machine technical parameters of 1600 Series Wire Mesh Weaving Machine Manufacturer



Item Weaving Width(mm) Wire Diameter(mm) MeshSize(mm) Power(v) WeavingSpeed (T/Min WeaveType
1600B 1600 0.025-0.2 40-400 380V2.2KW 60-90 Plain and Twill
1600D 1600 0.1-0.35 20-140 380V2.2KW 60-90 Plain and Twill





Our Services:

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.

Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

FAQ:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.

Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment

Payment terms: T/T,LC,WU,MG,Packing: waterproof material,control box: wooden case
