Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network

Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network
Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network

Large Image :  Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1600B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Type: Fully Automatic Color: Green And According To Your Requirements
Wire Diameter: 0.4--1 Mm Density: 4-- 20
Voltage: 380V After Sales Service: Engineers Available To Service Overseas
High Light:

wire mesh manufacturing machine

,

metal mesh machine

Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network


King Kong net stainless steel weaving net machine adopts flexible rapier linear weft insertion, secondary weft insertion, mechanical intermittent automatic feeding, active coiling, treadmill suspension, and automatic weft breaking. It has the advantages of large beating force, strong bearing capacity, high precision and flat surface.

Main features

  1. It works automatic stopping and displaying functions at any warp broken or weft broken.
  2. The whole machine works stably in a low center of gravity and a low level of noise.

  3. It is highly adaptive to metal wires.

  4. The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright

  5. It has the advantages of large beating force, strong bearing capacity, high precision and flat surface

The technical parameters are shown in the Table below



Item

Unit

Reference value

Wire net maximum breadth

mm

1600

Density

mesh/inch

4--20

Crankshaft rotating speed

r/min

40

Brake moto Power

KW 5.5
Brake moto Voltage V 380
Brake moto Rotating speed

r/min

1420

External dimension

mm

2600×3100×13600

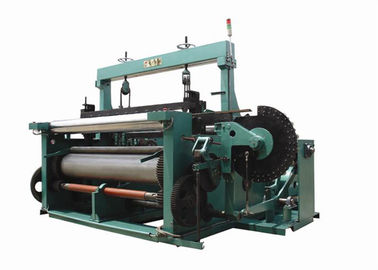

Machine picture



Full Automatic Heavy Type Wire Mesh Weaving Machine For King Kong Network 0
