Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical

Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical
Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical

Large Image :  Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical

Product Details:

Place of Origin: China
Brand Name: Jinglian
Certification: ISO-9001
Model Number: ZWJ-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: As requirements
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Condition: New Power(w): 2.2KW
Height: 1.5m Company: Manufacter
Certification: ISO-9001
High Light:

wire mesh equipment

,

fiberglass weaving machine

Dutch Mesh 40-200 mesh/Inch Shuttleless Wire Mesh Making Machine





The Intrudution Of Jinglian Machinery



Our machine is with update technology stable and precise, the wire mesh is no bad meshes, the wire mesh weaving machine is low center of gravity and low-noice.

Our wire mesh machine including semi-automatic and fully-automatic to meets the diffirent requirements from your customers.The wire mesh machine could produce all kind of wire mesh applicated in diffirent area at high quality.



The Appllication of the Wire Mesh Weaving Machine



  1.  Width: 1000mm,1200mm,1300mm,1400mm,1500mm,1600mm,1800mm,...2600mm
  2. *Mesh: dutch mesh 4-20mesh/inch
  3. Plain 4-40 mesh /inch,
  4. *wire diameter: <1.0mm
  5. *speed: 35-40turns /minute
  6. *Power: 5.5kw,380v

The Technical Parameters of the Wire Mesh Weaving Machine



Model Width
MM
Opening density
(Mesh)
Wire diameter(mm) Rotating speed
of crank shaft (r/minute)
Motor power(KW) Weight(T) Outside size(mm)
ZWJ1300B 1300 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1300D 1300 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600B 1600 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600D 1600 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ-1300/1600 Heavy machine 1300/1600 2-16 0.1-0.55 40 5.5KW380V,50HZ 8-16 3500x4200x2500

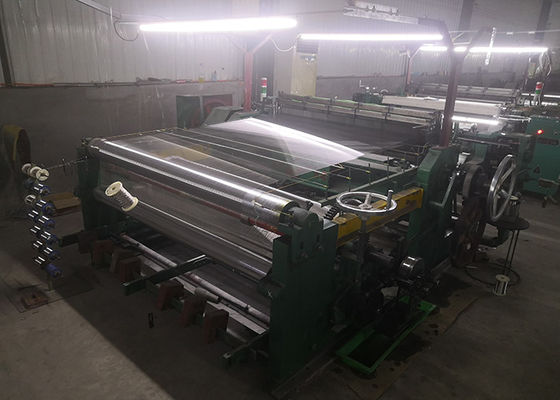

The Picture of the Wire Mesh Weaving Machine



Dutch Wire Mesh Making Machine 40-200 Mesh / Inch Shuttleless Technical 0
