Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine

Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine
Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine

Large Image :  Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Keywords: Wire Mesh Weaving Machine Type: Fully Automatic
Wire Diameter: 0.025-0.2 Voltage: 380V
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

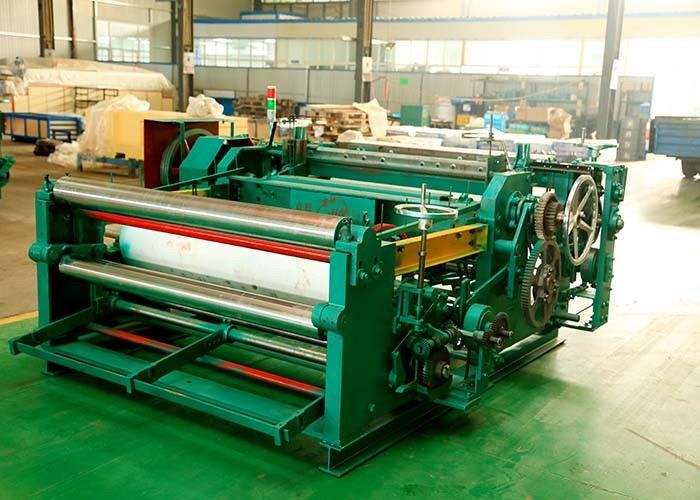

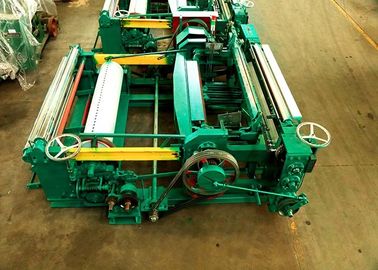

ZWJ-1300 Numerical Control Wire Net Weaving Machine





Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

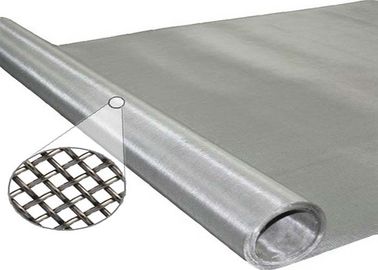

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3.Fast weaving

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.



Characteristics and functions:



Through adopting the PLC programmable controlling system and controlling net reeling and warp pacing by servo motors,the fabric with 40-400 standard wire diameters can be more accurately weaved.The weaving tension can be automatically adjusted by tension sensor,thereby making higher precision of mesh ;the adoptionof conjugate cam beating-up machine and rapier transmission mechanism with tooth profile rapier band can make the beating-up speed reach 120 r/min,improving the efficiency of 70%;the mesh count regulation and net surface can realize numerical control with simple and accurate mesh count adjustment;the adoption of limitless net reeling method realizes the numerical display function of length of weaved net ,which can shorten the auxiliary weaving time, thereby greatly improving the production efficiency.



Main Parameters:

NAME ZWJ-1300D
MESH SIZE 20-400 mesh/inch
WIRE DIAMETER 0.10-0.35mm
BEATING-UP FREQUENCY 70 -120r/min
MESH WIDTH 1300mm
MOTOR POWER 2.2kw
OVERALL SIZE 3.0m*3.2m*1.5m



Durable Numerical Control Wire Net Weaving Machine , Stainless Steel Wire Mesh Machine 0
