Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine

Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine
Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine

Large Image :  Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.4m Width: 1300mm
Speed: 85r/min Wire Diameter: 0.045mm
Raw Material: Stainless Wire Mesh Size: 80 Meshes
High Light:

2000mm wire mesh weaving machine

,

cnc wire mesh weaving machine

,

stainless wire mesh weaving machine

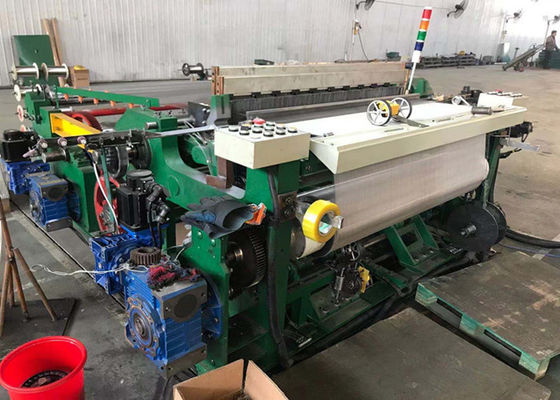

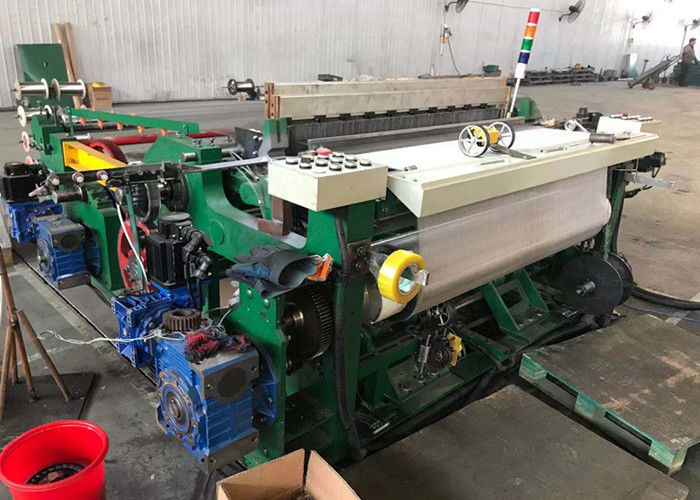

CNC Taking Up Fully-Autmatic 2000mm width Stainless Steel Weaving Loom Wire Mesh Weaving Machine



1 :SS Weaving machine Main features:



1 Full CNC  control

2, Adjustable Gripper speed
3, Quite suitable for weaving of heavy and high density fabric.
4, The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
5, It works automatic stopping and displaying functions at any warp broken or weft broken.
6,The whole machine works stably in a low center of gravity and a low level of noise.

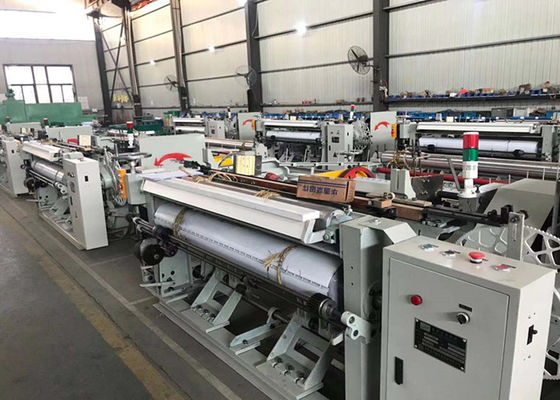

2 , Diffirent type of the stainless steel wire mesh looms:



Machine Type ZWJ-1300 ZWJ-1600 ZWJ-2100
Mesh Size 120meshes 120meshes 120meshes
Wire diameter 0.035mm  0.035mm 0.035mm
Feeding Weft Wire Speed 70r/min 70r/min 70r/min



3: The application of  stainless wire mesh



The stainles wire mesh would be usd in many filter industry like oil , food , chemical  industry ,

Also the wire mesh could be mosquto wire mesh, windown screen mesh , protective wire mesh





4 :The details of the stainless steel wire mesh weaving machine



Cnc Taking Up 2000mm Stainless Wire Mesh Weaving Machine 0
