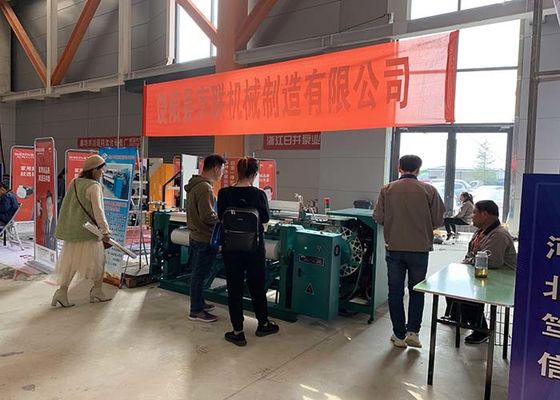

CE Numerical Control Wire Mesh Weaving Machine , Wire Mesh Equipment

CE Numerical Control Wire Mesh Weaving Machine , Wire Mesh Equipment
CE Numerical Control Wire Mesh Weaving Machine , Wire Mesh Equipment CE Numerical Control Wire Mesh Weaving Machine , Wire Mesh Equipment

Large Image :  CE Numerical Control Wire Mesh Weaving Machine , Wire Mesh Equipment

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: SKZWJ-1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Type: Fully Automatic Condition: New
Color: Requirement Certification: ISO9001-2008;CE
Welding Speed: 70-120times/minute Mesh Width: Max.2100mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Wire Diameter: 0.025-0.4 Mm
Warranty: 1 Year
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

 0.025-0.35 mm Wire Mesh Weaving Machine SKZWJ-2100





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.

The wire mesh machine producing the wire mesh which is highly adaptive to metal wires,It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern and tappered contrast microgroove

The wire machine works automatic stopping and displaying functions at any warp broken or weft broken, The whole machine works stable in a low center of gravity and a low level of noise.

The type of ZWJ-1300B weaving machine is an improvement based on type 1300A weaving machine to satisfy the user's requirements,as some of the parts are rebuilted,Type B machine is especially improved in the rigidity when comparing with typeA machinem the ths it is more suitbale for weaving with wires in larger diameter.



Product Details:

Model Number: SKZWJ-1600 Power(W): 2.2KW
Dimension(L*W*H): 2.6m*3.7m*1.4m Wire Diameter: 0.025-0.35mm
Mesh Size: 40-400mesh/inch Mesh Width: 1600
Machine Type: Numerical Control Beating-up frequency: 120r/min
Weight: 2.9T Warranty 1 Years
Condition: New Color: Requirement
Production Capacity: 100sets / Month Packaging Details: wooden case
Place of Origin: Hebei, China (Mainland) Port: Xingang Tianjin
After-sales Service Provided: Engineers Available To Service Oversea

Function introduction:

PLG programmable control system is adopted in this machine, which controls winding and let off by servo motor, realizes automatic adjustment of mesh tension, improves mesh accuracy, and weaves fabrics with 40-400 mesh standard wire diameter more accurately; makes the speed of the loom reach 120r / min, and improves efficiency by 71%; digital control is realized by mesh adjustment and tension setting, which makes the mesh and tension adjustment simple and accurate; infinite winding is adopted Net mode and digital display of the length of the net can shorten the auxiliary time of weaving and greatly improve the production efficiency.



Main machine technical parameters of Machine:

Item

Weaving Width

(mm)

Wire Diameter

(mm)

Mesh

Size

(mm)

Power

(v)

Weaving

Speed (T/Min

Weave

Type

Weight

(KG)

1300B 1300 0.025-0.2 40-400

380V

2.2KW

70-78 Plain and Twill 2500
1300D 1300 0.1-0.35 20-140

380V

2.2KW

75 Plain and Twill 2650
1600B 1600 0.025-0.2 40-400

380V

2.2KW

60-90 Plain and Twill 2900
1600D 1600 0.1-0.35 20-140

380V

2.2KW

60-90 Plain and Twill 2900



Main machine technical parameters of Numerical Control Wire Net Weaving :



TYPE SKZWJ-1300 SKZWJ-1600 SKZWJ-2100
Mesh Size 40-400mesh/inch 40-400mesh/inch 40-400mesh/inch
Wire Diameter 0.025-0.35mm 0.025-0.35mm 0.025-0.35mm
Bating-up Frequency 120r/min 120r/min 120r/min
Mesh Width 1300mm 1600mm 2100mm
Motor Power 2.2kw 2.2kw 2.2kw
Over Size 2.6m*3.4m*1.4m 2.6m*3.7m*1.4m 2.6m*4.2m*1.4m



Our Services:Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

FAQ:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the

lowest cost.

Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air

tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment

Payment terms: T/T, LC,WU,MG

Packing: waterproof material,control box: wooden case
