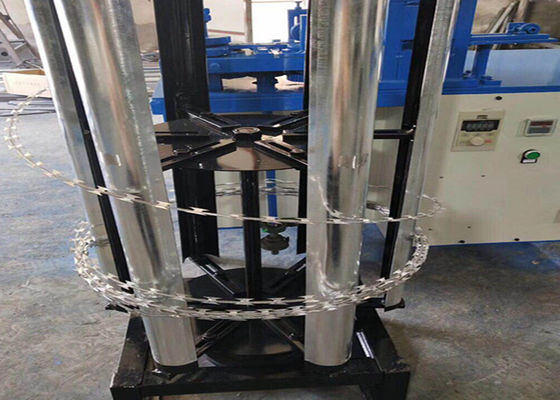

CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine

CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine
CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine

Large Image :  CBT-65 1.6mm Galvanized Barbed Wire Manufacturing Machine

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: RWM-001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 5 Sets/month
Detailed Product Description
Place Of Origin: Hebei, China Motor: 2.2kw
Condition: New Blade Diameter: 1.6mm
Warranty: 1 Year Raw Material: Galvanized Steel Wire
High Light:

galvanized barbed wire manufacturing machine

,

1.6mm barbed wire manufacturing machine

,

CBT-65 Barbed Wire Manufacturing Machine

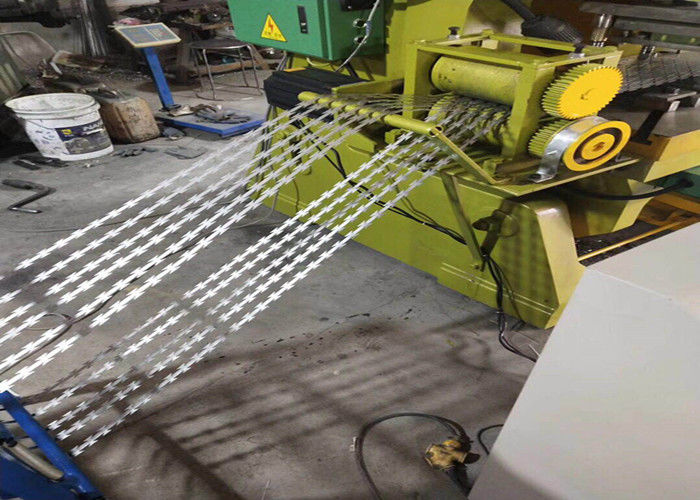

High Speed Semi-Automatic Razor Wire Machine Production Line Blade Wire Making Machine



1, Jinglian Machinery manufacture Co.,LTD



    Raoyang County Jinglian Machinery manufacture Co.,LTD is a prefenssional wire mesh machine manufacture, the rich producing exprenicse and the quality control system makes us confident to offer the quality razor wire machine products at a high level razor wire machine with a resonable price.

   Our razor wire making machine is fully automatic, the blade wire including BTO-22,BTO-20,CBT-65, the thickness of galvanzied roll is from 0.5-1mm based on the podwer of pcuhing machine.



2, The instruction of the fully-automatic razor wire machine :

  Puching power: 10-20 tons

  Thickness of the galvanized steel roll: 0.5-1.5mm

  Wraping Machine: automatic warping

   Coiling Plater: round



3, Razor wire or blade wire type:

  BTO-22, CBT-60, CBT-65,

  Coil Size: 30cm-50cm

  Connecting cap connected the coild





4 Details of the Razor wire machine:



Model CS-A CS-B CS-C
Motor 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355r/min
Wire diameter 2.2-3.0 mm 2.2-3.0 mm 1.6-2.2 mm
Barbed wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed Space 76,102,127 102,127 102,127
Twisted number 3-5   7
theoretical production 77kg/h 40kg/h 40kg/h
weight 1000kg 950kg 950kg
Main part size 1950x950x1300mm 3100x1000x1150mm 3100x1000x1150mm
