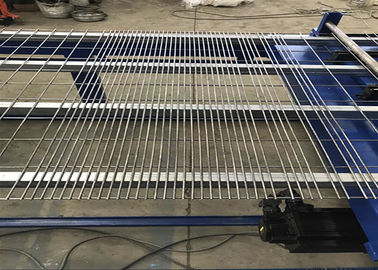

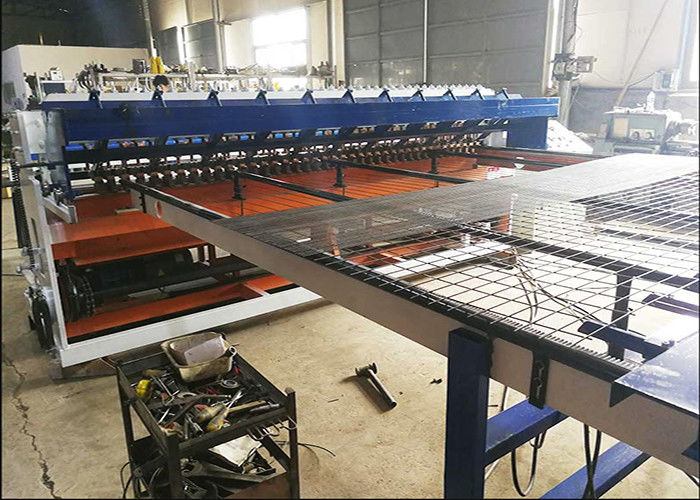

Building Steel Wire Fence Mesh Welding Machine Fully Automatic High Speed

Building Steel Wire Fence Mesh Welding Machine Fully Automatic High Speed
Building Steel Wire Fence Mesh Welding Machine Fully Automatic High Speed Building Steel Wire Fence Mesh Welding Machine Fully Automatic High Speed

Large Image :  Building Steel Wire Fence Mesh Welding Machine Fully Automatic High Speed

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 25 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Detailed Product Description
Type: Welding Wire Machine Usage: Product Fence For Protect Highway And Railway
Voltage: 380V Rated Capacity: 150KVAx5
Welding Speed: 75times/min Wire Diameter: 2.5-6mm
Welding Width: 1200mm-3000mm Weft Wire Spacing:: 50-200mm
High Light:

wire knitting machine

,

wire fence making machine

Fully Automatic Building Steel Wire Fence Mesh Welding Machine







1.The characteristics of welded mesh panel machine



This equipment is the mechanical electronic computer integration advanced welds the net equipment , this machine biggest characteristics is the organzine may adjust may appear between the latitude and the latitude on the identical standing net the different size hole, the welding transform voltage uses the new highly effective transform voltage mesh, the wire diameter scope which the expansion may weld. Also this machine welds the net piece smoothly, diagonal line error small, is easy to operate. The flexibility is the ideal equipment which the net fence welds.





2.The details of welded mesh panel machine

1.Install: The machine need not install the anchor bolt, only need to put on the ground of plant.

2.Adjust: The weft wire space and warp space will be adjusted as your requirement.

All of the debugging working will be done in the factory manufacture by our engineers.

We will send the photos and video of the mesh machine to you.

3.Control systerm: PLC Control Systerm

4.Machine transformer: 120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.

5.Machine cooling device: Water colling

6.Machine accessories: Wire straightening and cutting machine





3.The specification of welded mesh panel machine



DNW-1
Wire diameter 2.5-6.0mm Warp form wire coil
Weft wire spacing 50-200mm Weft form wire coil
Warp spacing 50-200mm Rated voltage 380V
Welding width 3000mm Rated power 50KVA x 2
Welding speed 55times/min Overall dimension 2400x2400x1400mm
Welding point 25 Weight 2.2T
