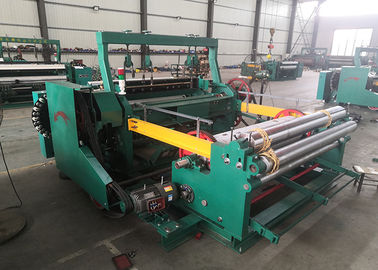

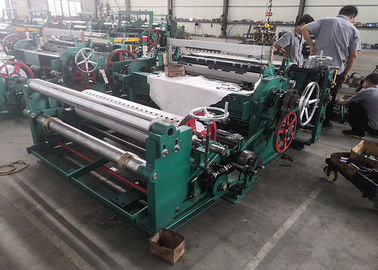

Aluminum Alloy Window Screen Machine With Closed Edge 1 Year Warranty

Aluminum Alloy Window Screen Machine With Closed Edge 1 Year Warranty
Aluminum Alloy Window Screen Machine With Closed Edge 1 Year Warranty Aluminum Alloy Window Screen Machine With Closed Edge 1 Year Warranty

Large Image :  Aluminum Alloy Window Screen Machine With Closed Edge 1 Year Warranty

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Origin: China (mainland) Color: Requirement
Type: Fully Automatic Weight: 2.5 T
Warranty: 1 Year Voltage: 380V
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

window screen making equipment

,

fiberglass weaving machine

Fully Automatic Window Screen Machine with Closed Edge for Aluminum Alloy



Key Specifications/Special Features:

With many years machine study in Weaving, Our machine is not sell to local, also sell to Shanghai, Guangzhou, Beijing, Changzhou, Pujiang city and more. We also export to 20+ countries, especially to INDIA, Argentina, Ukraine, Monthly export, only export 50 sets -70 sets. For domestic, monthly we sell at least 100 machines.

It not only for aluminum alloy material window screen, also very good weaving performance for Stainless steel window screen, galvanized window screen. It is not only for closed/selvedge, also we can remove the folded run boarder and put cutter to make open edge wire mesh.

Our machine history:


This machine is origin from K72 weaving machine.
With aluminum alloy window screen, stainless steel window screen & galvanized window screen marketing require more and more, we study the new type Window screen weaving machine.
We never stop for the machine study, our focus on is new.

The machine character:


1. All the machine's frame, it is steel not iron. (Why? as because if it is steel, not only assure the using lifespan, also it is very convenient for customer to do some small changes on the frame)

2. Our all electricity facility is in brand

3. The machine type is more easy to weave window screen (Why? please see the red axis's angel)

4. Adopt bearing

5. Seeing from the whole machine, it is very strong.
(Quality: machine quality, all is steel structure)
(Mesh - the hole is squarer, more flat)
(Speed: the turn is twice at least than old machine)
6. This type machine:
Mesh range: 10-30mesh
Mesh diameter: 0.1-0.45mm
Voltage: 380 V/415V/440V/220V, 50/60Hz
Motor power: 2.2kW
Rotating speed of crank shaft: 72r/min



Description Window screen machine can weave:
Application
MESH WIRE GAUGE SIZE

Stainless steel window screen
10X10
14X14
16X16
18X18
18X14
22X22
24X24
BWG18
BWG24
BWG38
BWG37
BWG36
BWG35
BWG34


3’X100’
4’X100’
1X25M
1.5X25M


Material
304, 316, 316L

Gal.iron
window
screening
10X10
14X14
16X16
18X18
18X14
22X22
24X24


BWG31
BWG32
BWG33
BWG34

3’X100’
4’X100’
1X25M
1.2X30M
1.5X25M

Electric gal.
after weaving
white or light-blue

Enameled iron window
screening
10X10
14X14
16X16
18X18
18X14
22X22
24X24

BWG31
BWG32
BWG33
BWG34

3’X100’
4’X100’
1X25M
1.2X30M
1.5X25M



Green or dark green

Aluminum coated window screening

10X10
14X14
16X16
18X18
18X14
22X22
24X24


BWG31
BWG32
BWG33
BWG34

3’X100’
4’X100’
1X25M
1.2X30M
1.5X25M



Silver


Plastic wire
window screening
12X12
14X14
16X16
18X18
22X22
24X24


BWG31
BWG32



3’X100’
4’X100’
1X25M
1.5X25M
Mesh12,14,16
Hinged weave

Mesh18,22,24
Plain weave

White, blue
green and more


Aluminum wire window
screening
10X10
14X14
16X16
18X18
18X14
22X22
24X24

BWG31
BWG32
BWG33
BWG34


3’X100’
4’X100’
1X25M
1.2X30M
1.5X25M

Material: AL-MG
Alloy or enameled Aluminum window SC
