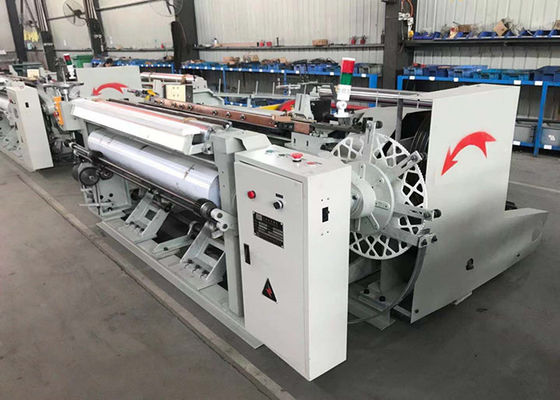

85r/Min 1600 Width Window Screen Mesh Weaving Machine

85r/Min 1600 Width Window Screen Mesh Weaving Machine
85r/Min 1600 Width Window Screen Mesh Weaving Machine 85r/Min 1600 Width Window Screen Mesh Weaving Machine

Large Image :  85r/Min 1600 Width Window Screen Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2018

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.6m Width: 1300mm
Speed: 85r/min Wire Diameter: 0.04mm
Raw Material: Stainless Wire Mesh Size: 80 Meshes
High Light:

Window Screen Mesh Weaving Machine

,

1600 Width Mesh Weaving Machine

,

85r/min Mesh Weaving Machine

1600 Width Shuttleles CNC Automatic SS Wire Mesh Weaving Machine For Windwon Screen Mesh



1 Full-Automatic stainless steel weaving loom Main features:



Standard width: 1000mm,1300,1600,2000mm

Wire diameter range:0.03-0.3mm

Weaving Density: Plain weave square hole 40-400 mesh, Twill weave<600 meshes

Speed :100(120 special design) RPM

Frequency converter step-less speed regualton, the actual speed depends on the weaving width and detailed sepcifications

Basic tension: 15000N/m



After-sale service of the SS wire mesh loom:
1.professional technology team can offer proposal for customers all kinds request
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3..Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer's factory for installation, debugging and training.
5.Complete installation instructions, circuit diagram, manual operations and machine layout



2 :Instruction of the stainless steel wire mesh loom



Standard Width 1000mm,1300mm
Wire diameter 0.03-0.3mm
Weaving Density plain weaving, twill weave


3: The application of  stainless wire mesh



Single electromotor driving
Automatic compensation of winding and was feeding
It stopped automatically when the latitude and longitude is cut off
Be suitable for soft ferrous metal, stainless steel, flexible brass

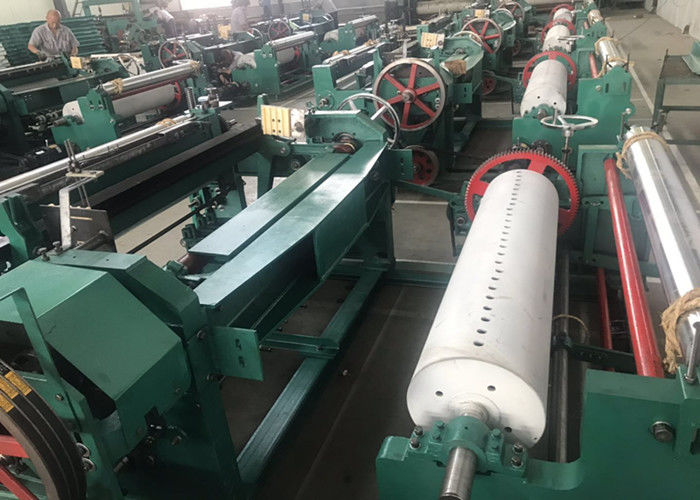

4 :The details of the stainless steel wire mesh weaving machine



85r/Min 1600 Width Window Screen Mesh Weaving Machine 0
