4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V

4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V
4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V 4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V

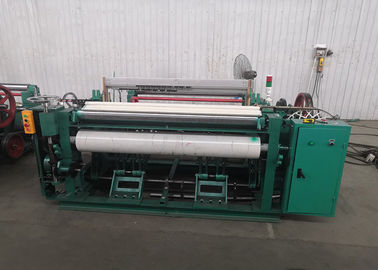

Large Image :  4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/month
Detailed Product Description
Color: Green Type: Fully Automatic
Weight: 2.5 T Wire Diameter: 0.025-1mm
Warranty: 1 Year Voltage: 380V
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

automatic weaving machine

,

wire netting machine

4-400 Mesh Stainless Steel Automatic Wire Mesh Machine Made In China





Summary



Please tell us the mesh, wire diameter, width which you frequently weave in whole year.
We will make the machine based on this,
then it will save you cost : machine purchasing cost, material weaving waste cost, power consumption cost

we not only do 1300/1600, we also can do 1000, 2000, 3000, 4000, it is based on your request



Description-simple


(1). The machine adopts the technique of shuttle less and straightaway went leading, automatic warp feeding and winding. Shedding are small and surfaces of woven screens are smooth. There is not any bright spot, bright trace and other defects on fine screen. The machine can make light-grade in the standard of GB/T5330-2003.
(2) Lower center of the gravity, good stability, low noise, and energy consumption, high efficiency.
(3). Rational design, simple construction, easy to operate and maintain.
Application: used for industrial purpose, window doors and poultry’s guards, sieves, filters and other purpose.
Character: single electromotor driving be suitable for soft metal, stainless steel, flexible copper wire, galvanized wire and more
Notes: The light metal shuttle less wire mesh machine (ZWJ-1300B/ZWJ-1600Q) after setting up can produce plain Dutch wire mesh, reverse plain Dutch wire mesh and twill Dutch wire mesh. The Max. Mesh size can go up to 2600 mesh.



Table of Technical Parameters







Model



Width



Opening density



Wire diameter



Rotating speed of crank shaft



Motor power

ZWJ1300B 1300MM 60-350 0.01-0.14 65-75 2.2kw
ZWJ1300D 1300MM 16-120 0.14-0.30 65-75 2.2kw
ZWJ1600B 1600MM 60-350 0.01-0.14 65-75 2.2kw
ZWJ1600D 1600MM 16-120 0.14-0.30 65-75 2.2kw
ZWJ 2000 heavy duty type 2000MM 10-100 0.2-1.0 45-55 5.5kw

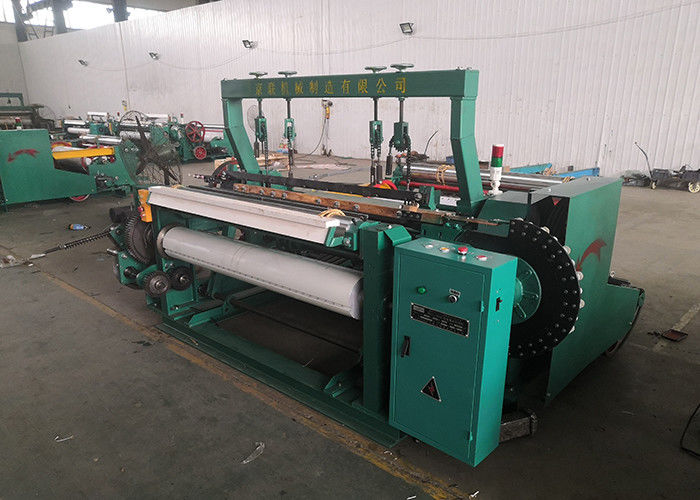

The Picture of the Automatic Wire Mesh Machine



4-400 Mesh Stainless Steel Wire Mesh Machine , Wire Mesh Loom Machine 380V 0
