40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control

40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control
40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control 40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control 40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control 40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control

Large Image :  40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control

Product Details:

Place of Origin: China
Brand Name: Jinglian
Certification: ISO-9001
Model Number: ZWJ-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: As requirements
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Condition: New Type: 1600mm Heavy Duty
Power(w): 5.5KW Height: 2 M
Certification: ISO-9001 Speed: 40r/min
High Light:

wire mesh equipment

,

fiberglass weaving machine

1600mm Heavy Duty Shuttleless Weaving Mesh Machine





Summary



The metal wire net weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.



Main features



1. We offer foreverTechnology support & spare parts available for after sales
2. Our engineer is always go abroad to set machine, train local Engineer, train workers how to weave perfect mesh
3. with many years machine research our machine type - light, Medium heavy, heavy and big machine for different mesh and thick, Thin wire
4. Kindly tell the mesh you want to weave with diameter,
Some machine type, it is warping self on machine, no need to buy Warping machine for Auxiliary equipment: spool form, warping Machine, spare shaft, lift, also with heddle, reed, spring, nylon Spring
Kindly contact us, we will choose for your machine type



1 It is highly adaptive to metal wires.
2 It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4 It works automatic stopping and displaying functions at any warp broken or weft broken.
5 The whole machine works stably in a low center of gravity and a low level of noise.



The Technical Parameters of the Wire Mesh Weaving Machine



Model Width
MM
Opening density
(Mesh)
Wire diameter(mm) Rotating speed
of crank shaft (r/minute)
Motor power(KW) Weight(T) Outside size(mm)
ZWJ1300B 1300 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1300D 1300 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600B 1600 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600D 1600 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ-1300/1600 Heavy machine 1300/1600 2-16 0.1-0.55 40 5.5KW380V,50HZ 8-16 3500x4200x2500

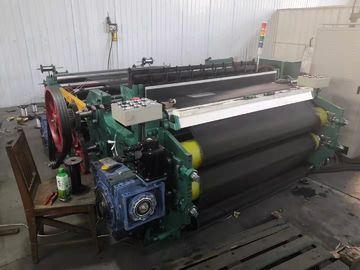

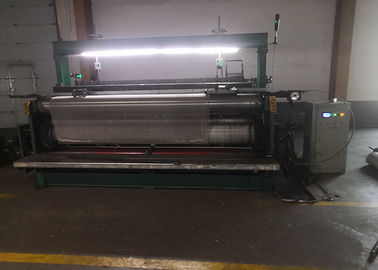

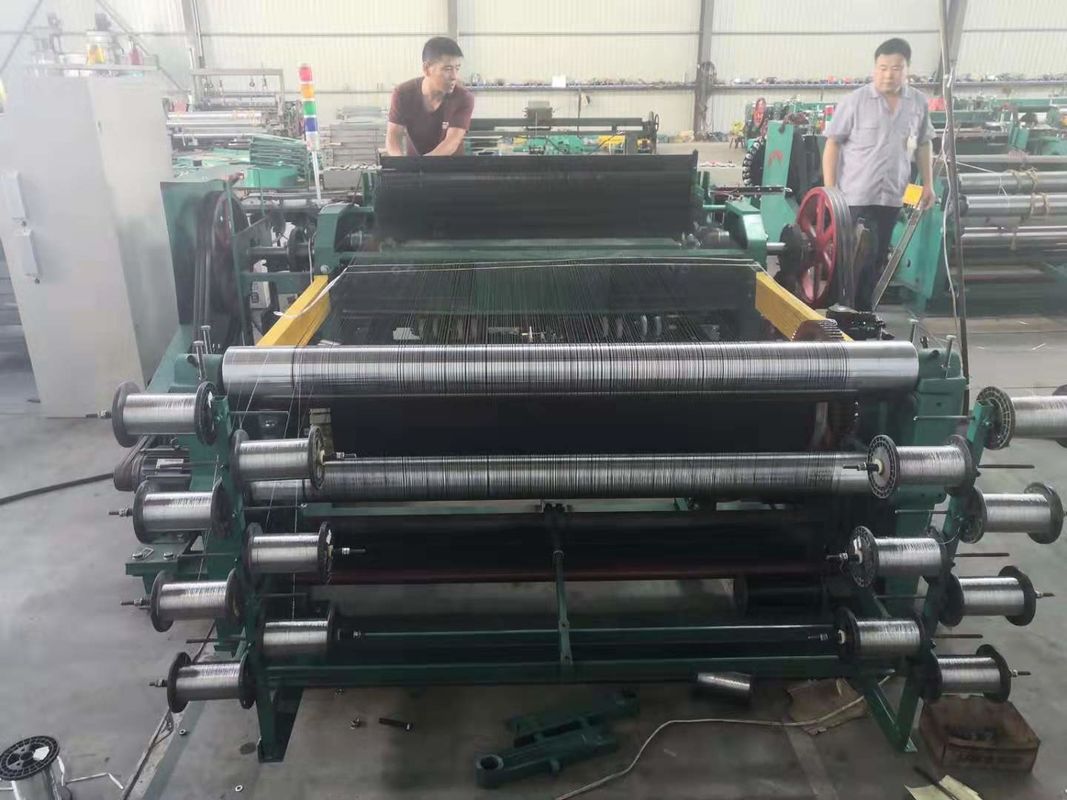

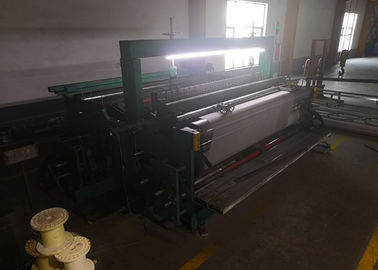

The Picture of the Wire Mesh Weaving Machine



40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control 0



40r/ Min 1600mm Metal Wire Shuttleless Weaving Machine Low Noise Auto Control 1
