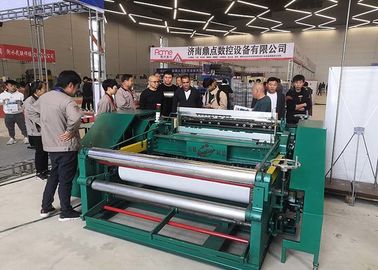

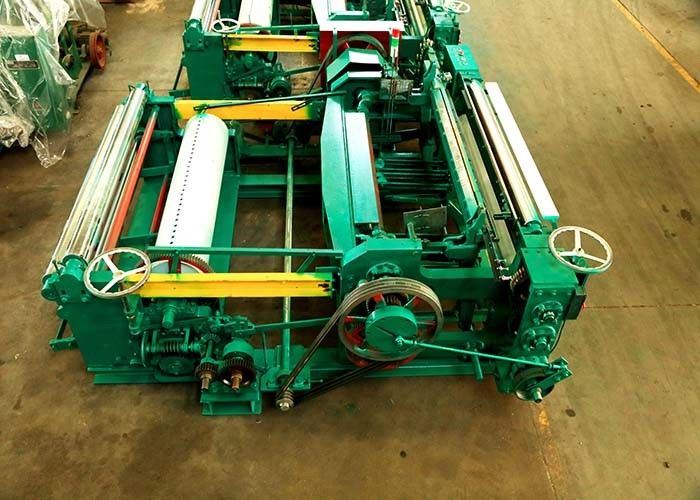

40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life

40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life
40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life 40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life 40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life

Large Image :  40-400 Mesh Wire Mesh Weaving Machine , Metal Mesh Machine With Long Life

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: SKZWJ-2100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Type: Fully Automatic Condition: New
Color: Requirement Certification: ISO9001-2008;CE
Welding Speed: 40-60 Times/minute Mesh Width: Max.2100mm
High Light:

wire mesh making machine

,

wire mesh manufacturing machine



40-400 mesh Wire Mesh Weaving Machine SKZWJ-2100





Product Details:



Model Number: SKZWJ-2100 Power(W): 2.2KW
Dimension(L*W*H): 2.6m*4.2m*1.4m Wire Diameter: 0.025-0.35mm
Mesh Size: 40-400mesh/inch Mesh Width: 2100
Machine Type: Numerical Control Beating-up frequency: 120r/min
Condition: New Color: Requirement
Production Capacity: 100sets / Month Packaging Details: wooden case
Place of Origin: Hebei, China (Mainland) Port: Xingang Tianjin
After-sales Service Provided: Engineers Available To Service Oversea




Function introduction:PLG programmable control system is adopted in this machine, which controls winding and let off by servo motor, realizes automatic adjustment of mesh tension, improves mesh accuracy, and weaves fabrics with 40-400 mesh standard wire diameter more accurately; makes the speed of the loom reach 120r / min, and improves efficiency by 71%; digital control is realized by mesh adjustment and tension setting, which makes the mesh and tension adjustment simple and accurate; infinite winding is adopted Net mode and digital display of the length of the net can shorten the auxiliary time of weaving and greatly improve the production efficiency.



Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.



The technical parameters are shown in the Table below.

TYPE SKZWJ-1300 SKZWJ-1600 SKZWJ-2100
Mesh Size 40-400mesh/inch 40-400mesh/inch 40-400mesh/inch
Wire Diameter 0.025-0.35mm 0.025-0.35mm 0.025-0.35mm
Bating-up Frequency 120r/min 120r/min 120r/min
Mesh Width 1300mm 1600mm 2100mm
Motor Power 2.2kw 2.2kw 2.2kw
Over Size 2.6m*3.4m*1.4m 2.6m*3.7m*1.4m 2.6m*4.2m*1.4m



Our Services:Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair

Packaging & Shipping:

The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.
