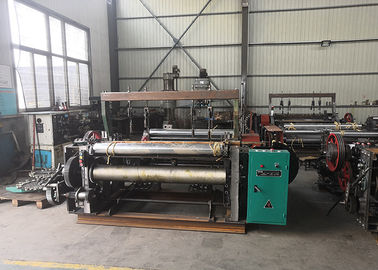

40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure

40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure
40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure 40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure

Large Image :  40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Condition: New Color: Green
Wire Diameter(mm): 0.025--0.2 Power(w): 2.2KW
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

wire mesh equipment

,

fiberglass weaving machine

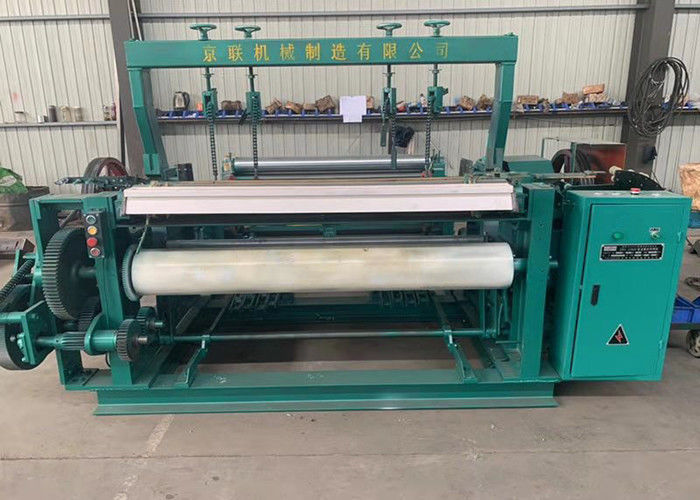

40 -- 400 Mesh / Inch Shuttleless Weaving Machine With Wire Maximum Breadth 1300 mm





Summary



JingLian shuttleless weaving machine(another name: rapier weaving machine)is the one which newly researched by our company , which can weave a large wire mesh scope and thick wire mesh. It work strongly and own big carrying capacity, widely density range.Its works own smooth surface and beautiful appearance.The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption.
Especially, it uses a unique power transmission design of gear to winding nets,and hanging heald frame.The two designs ensure effectively the capacity to weave thicker wire.



Main parameter


Model ZWJ--1300B
Mesh density 40-400
Wire Diameter 0.025-0.2mm
Wire Materials Nickel Wire,S'Steel Wire.Galvanized wire,Alufer wire etc
Reed Space/Width 1300mm
Crank RPM 55-72r/min
Driving Mode Electrical motor, V-belt, Crank
Overall Size -
Engine power 2.2KW
Weight 2.5Ton



40 -- 400 Mesh / Inch Shuttleless Weaving Machine High Efficiency Compact Structure 0
