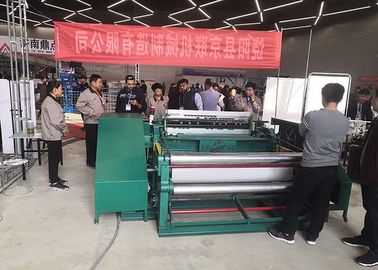

2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance

2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance
2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance 2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance 2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance

Large Image :  2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Type: Fully Automatic Welding Speed: 75times/minute
Wire Diameter: 0.025-0.4 Mm Weight: 2-5T
Voltage: 380V Color: Requirement
After-sales Service Provided: Engineers Available To Service Machinery Overseas Certification: ISO,ISO9001-2008;CE
High Light:

wire mesh making machine

,

wire mesh manufacturing machine





Supply new shuttleless loom jl-wsj Jinlu supply shuttleless weaving machine, also known as wire mesh weaving machine, is divided into three types, namely zwj-1300 medium and heavy metal mesh weaving machine, zwj-1600b metal mesh weaving machine and zwj-2000 heavy metal mesh weaving machine. Features and application: This machine has international advanced level and can replace import. It adopts shuttle free linear weft insertion, mechanical automatic diameter feeding, passive cutting, automatic stop display of broken diameter and weft. It shrinks and weaves metal wire mesh, which is widely used in liquid, gas filtration and solid particle screening in petroleum, chemical, mechanical, military, aerospace and other industrial sectors. Jl-1300 medium and heavy metal mesh weaving machine main parameter Mesh width: 1300mm; mesh width: square mesh 10-100 mesh / inch; special mesh 40-350 mesh / inch; crankshaft speed: 53 rpm; motor power: 2.2kw; overall weight: 6000 kg; overall dimension: 2419x3225x1849mm. Jl-1600b medium and heavy duty wire mesh weaving machine main parameter Mesh width: 1600mm; mesh width: square mesh 10-100 mesh / inch; special mesh 40-350 mesh / inch; crankshaft speed: 53 rpm; motor power: 2.2kw. Jl-2000 medium and heavy metal mesh weaving machine main parameter Mesh width: 2000mm; mesh width: square mesh 10-100 mesh / inch; special mesh 40-350 mesh / inch; crankshaft speed: 53 rpm; motor power: 2.2kw.

Description:

ZWJ-D series type machine is a new type of machine based on ZWJ-B type machine, which is improved on some parts according to the needs of users. Compared with B type machine, the rigidity of D type is greatly improved, so it is more suitable for fabrics with larger weaving diameter.

ZWJ -- D Series Numerical Control Wire Mesh Weaving Machine adopts flexible rapier linear weft insertion, mechanical intermittent automatic delivery, roll net, one card. Weft, treadmill suspension, warp, weft break self-test stop. The design adopts three pairs of steel structure fuselage and enhances the strength of the roller and mechanical structure, so that the machine can withstand large warp tension and has the characteristics of large beating force. It is suitable for weaving various metal mesh belts and contrasting dense lines. Net and square hole net, twill net.



Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttle-less and straightway weft leading,automatic warp feeding and winding.Shedding are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high efficiency.

5, Rational design,simple construction,easy to operate and maintain.



Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:

TYPE ZWJ-1300D ZWJ-1600D ZWJ-2100D
MESH SIZE 20-140mesh/inch 20-140mesh/inch 20-140mesh/inch
WIRE DIAMETER 0.10-0.35mm 0.10-0.35mm 0.10-0.35mm
BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 3.0m*2.8m*1.4m 3.0m*3.1m*1.4m 3.0m*3.6m*1.4m



Main machine technical parameters of 1300 Series Wire Mesh Weaving Machine Manufacturer :

Item Weaving Width(mm) Wire Diameter(mm) MeshSize(mm) Power(v) WeavingSpeed (T/Min) WeaveType
1300B 1300 0.025-0.200 40-400 380V2.2KW 75-78 Plain and Twill
1300D 1300 0.10-0.35 20-140 380V4KW 75-80 Plain and Twill
1300HD 1300 0.1-0.6 10-40 380V 2.2KW 65-80 Plain

Our Services:

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.

Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

2.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance 02.2KW Medium Duty Metal Wire Mesh Weaving Machine With Stable Performance 1
