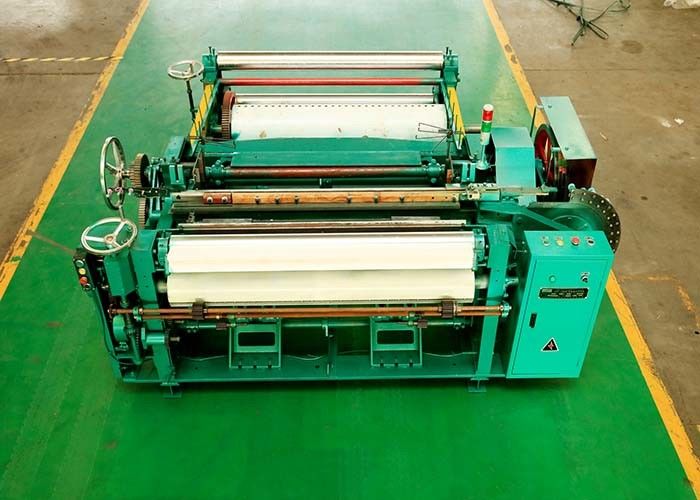

20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed

20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed
20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed 20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed 20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed

Large Image :  20-140 Mesh Medium Duty Metal Wire Net Weaving Machine High Welding Speed

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ-2100D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Product Name: Wire Mesh Weaving Machine Welding Speed: 75times/minute
Wire Diameter: 0.10-0.35 Mm Voltage: 380V
After-sales Service Provided: Engineers Available To Service Machinery Overseas Certification: ISO,ISO9001-2008;CE
High Light:

wire mesh making machine

,

wire mesh manufacturing machine

20-140mesh Medium-duty metal wire net weaving machine ZWJ-2100D





Our main products are: Wire mesh machinery: LF series of ginning and weaving machine, hook up machine. Non edge mesh machine, electric welding mesh machine, coal mine warp and weft mesh machine, rope stabbing machine, blade rope stabbing machine, hexagonal mesh machine, gabion mesh machine, steel plate mesh machine, grassland mesh machine and wire drawing and galvanizing equipment, etc. Wire mesh: all kinds of stainless steel wire (mesh), galvanized (mesh), embossed mesh, welded mesh, hook mesh, guardrail mesh, gabion mesh, barbed wire, grassland fence mesh and wire mesh deep processing products. Shuttleless weaving machine is a kind of machine developed by our company to meet the market demand. It has strong working power, strong bearing capacity, large spinning wire size, wide density range, and can weave wire diameter of 0.1-1.6mm, and more than 2 mesh various metal wire mesh Features: mechanical intermittent automatic let off, active web winding, shuttle weft insertion, treading plate hanging heald, double beating weft structure; Application: widely used in petroleum, chemical, machinery, mining and other fields of solid and liquid filtration.

Product Details:

Model Number: ZWJ--2100D Power(W): 2.2KW
Dimension(L*W*H): 3.0m*3.6m*1.4m Wire Diameter: 0.10-0.35mm
Mesh Width: 2100mm Mesh Size: 20-140mesh/inch
Beating-up Frequency: 70r/min Warranty: 1 Years
Color: Requirement Condition: New
Production Capacity: 100sets / Month Place of Origin: Hebei, China (Mainland)
Packaging Details: Wooden Case Port: Xingang Tianjin
After-sales Service Provided: Engineers Available To Service Overseas

Description:

ZWJ-D series type machine is a new type of machine based on ZWJ-B type machine, which is improved on some parts according to the needs of users. Compared with B type machine, the rigidity of D type is greatly improved, so it is more suitable for fabrics with larger weaving diameter.

ZWJ -- D Series Numerical Control Wire Mesh Weaving Machine adopts flexible rapier linear weft insertion, mechanical intermittent automatic delivery, roll net, one card. Weft, treadmill suspension, warp, weft break self-test stop. The design adopts three pairs of steel structure fuselage and enhances the strength of the roller and mechanical structure, so that the machine can withstand large warp tension and has the characteristics of large beating force. It is suitable for weaving various metal mesh belts and contrasting dense lines. Net and square hole net, twill net.



Main Function:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttle-less and straightway weft leading,automatic warp feeding and winding.Shedding are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.



Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:



TYPE ZWJ-1300D ZWJ-1600D ZWJ-2100D
MESH SIZE 20-140mesh/inch 20-140mesh/inch 20-140mesh/inch
WIRE DIAMETER 0.10-0.35mm 0.10-0.35mm 0.10-0.35mm
BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 3.0m*2.8m*1.4m 3.0m*3.1m*1.4m 3.0m*3.6m*1.4m





Main features:

1 Final products have a wide usage:for filter screen, decoration curtain wall, mine vibrating screen.
2 It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4 It works automatic stopping and displaying functions at any warp broken or weft broken.
5 The whole machine works stably in a low center of gravity and a low level of noise.
6 Easy to learn and operate



Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.



Our Services:

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.



FAQ:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.

Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment

Payment terms: T/T, LC,WU,MG

Packing: waterproof material,control box: wooden case
