2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment

2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment
2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment 2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment

Large Image :  2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment

Product Details:
Place of Origin: China
Brand Name: Jinglian
Certification: ISO-9001
Model Number: ZWJ-03
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: As requirements
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Condition: New Type: 2000mm Heavy Duty
Power(w): 5.5KW Certification: ISO-9001
After-sales Service Provided: Engineers Available To Service Machinery Overseas Production Capacity: 100sets / Month
High Light:

industrial weaving machine

,

fiberglass weaving machine

2000mm Heavy Duty Shuttleless Weaving Mesh Machine





Main features

  • Tell us the mesh, wire diameter, width which you frequently weave in whole year

We will make the machine based on this,Then it will save you cost: machine purchasing cost, material Weaving waste cost, power consumption

cost

  •  The Mesh width you weave, we not only do 1300 /1600,We also can do 1800, 2000, 2100, 2200, ,2300,2400,2500,2600.it is based on your request
  • Different country, the power pressure is different, like India415V or 440-220 V
    so this is adjustable by your country's need
1 It is highly adaptive to metal wires.
2 It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4 It works automatic stopping and displaying functions at any warp broken or weft broken.
5 The whole machine works stably in a low center of gravity and a low level of noise.



The Technical Parameters of the Wire Mesh Weaving Machine



Model Width
MM
Opening density
(Mesh)
Wire diameter(mm) Rotating speed
of crank shaft (r/minute)
Motor power(KW) Weight(T) Outside size(mm)
ZWJ1300B 1300 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1300D 1300 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600B 1600 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600D 1600 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ-1300/1600 Heavy machine 1300/1600 2-16 0.1-0.55 40 5.5KW380V,50HZ 8-16 3500x4200x2500

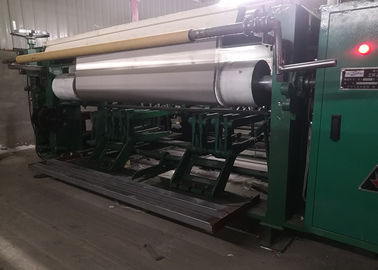

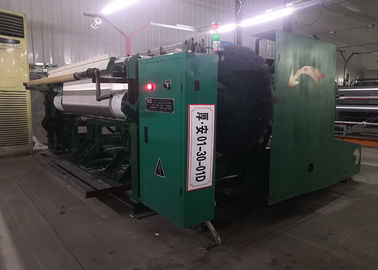

The Picture of the Wire Mesh Weaving Machine



2000mm Width Wire Mesh Making Machine , Heavy Duty Wire Mesh Equipment 0
