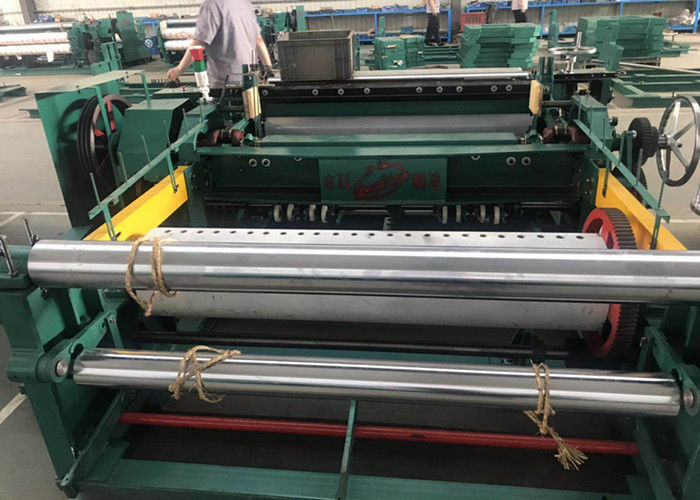

1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine

1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine
1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine 1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine

Large Image :  1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2027

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.6m Width: 1800mm
Speed: 80r/min Wire Diameter: 0.055mm
Raw Material: Stainless Wire Mesh Size: 110 Meshes
High Light:

shuttless wire mesh weaving machine

,

2000mm wire mesh weaving machine

,

1.6m Wire Mesh Weaving Machine

Easy to Operate Low Noise Shuttless 2000mm Width CNC Gripper Wire Mesh Loom For Windwo Screen Weaving



1 Full-Automatic stainless steel weaving loom Main features:



Standard width:1000mm, 1300mm,1600mm,2000mm,2500mm

Wire diameter Range: 0.06-0.45mm

Weaving Density: plain weave square hole 20-260 mesh per inch

The frame of the whole machine is enlarged ,which expands the area of support of the beam.The machine has been innovated and improved in the aspects of transmission, cam and dobby shedding and let-off and take-up system . it is quite suitable for the high speed and stable weaving of heavy and high-density fabric.

.high speed , heavy duty and great stability
it is quite suitable for weaving of heavy and high density fabric.running smoothly , high efficiency and speed up to 1200rpm



2 :Instruction of the stainless steel wire mesh loom



Reed Width(cm) 130, 150, 170, 190, 210, 230, 260, 280, 320, 340, 360
Nozzle Single nozzle/ Double nozzle/ Three nozzle/ Four nozzle
Installed Power 1.5kw~5.4kw
Speed 600~1200rpm/min(Actual speed depends on the specifications of fabric)
Heald Frame standard 6 pieces frame
Shedding Plain/ Cam/ Dobby
Let-off Mechanical Let-off/ Electronic Let-off
Take-up Mechanical Take-up/ Electronic Take-up
Electronica Power Source 380v/415v
Drying By Suction Blower Device
Cutter Mechanical Cutter
Leno Device Planetary Gear Type





3: The application of  stainless wire mesh



Wire Mesh

Window Screen

Mosquita Windown

Protective Wire Mesh

Windown Wire mesh

The iron wire, copper wire, brass wire , Alumunium wire is suitable for the machine

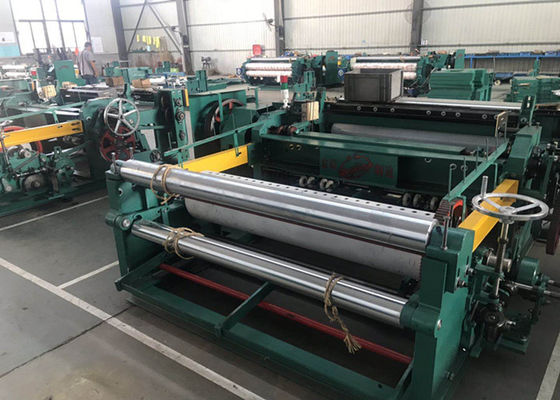

4 :The details of the stainless steel wire mesh weaving machine



1.6m Height Shuttless 2000mm Width Wire Mesh Weaving Machine 0
