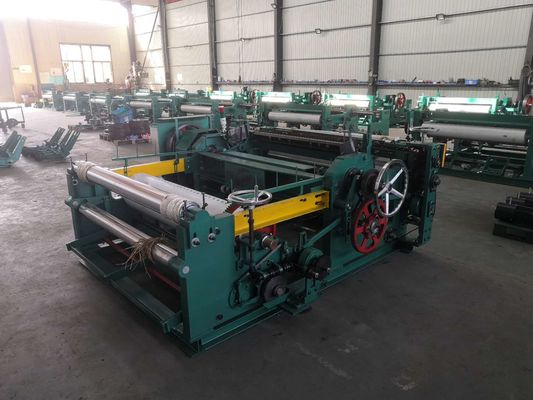

1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine

1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine
1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine 1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine 1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine

Large Image :  1800mm 0.4mm Rapier Loom Shuttleless Weaving Machine

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1800B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Color: Green And According To Your Requirements Mesh Size: 4--20 Mesh/inch
Wire Diameter: 0.4-1mm Width: 1800mm
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

rapier loom shuttleless weaving machine

,

1800mm Shuttleless Weaving Machine

,

0.4mm Shuttleless Weaving Machine

full automatic shuttleless weaving machine-jl (rapier loom)



Specifications

1,1300B 1300D heavy, heavy tudy type
2,B type, 40-350mesh,
2,D type, 10-100mesh



shuttleless weaving machine

Characteristics:1,Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2,Large adjust range:The metal wire screen can be woven out by the machine of not only square opening from 14-400 mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen

weaving,etc,

and have advantage over products of other machines.

3,The machine adopts technique of shuttleless and straightway weft leading,automatic warp feeding and winding.

Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.

The machine can make high -grade in the standard of GB/T 5330-2003.

4,Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5,Rational design,simple construction,easy to operate and maintain.



ZWJ-1800 Middle-Heavy-Type Metal Wire Mesh Weaving Machine

Characteristic and application: This type of machine is up to the international advanced standard. With leading weft shuttleless-straightaway, feeding warp and furling mechanically-automatically, automatic stop weaving upon breaking of wire. The metal wire mesh by this type of weaving machine is widely used in filtering of liquid and gas and sieving of solid particle in petroleum, chemcial industry, equipment and machinery, military industry, aerospace etc.

.Main characteristics:

  1. Rational design, simple constrution, easy to operate and maintenance.
  2. It works automatic stopping and displaying functions at any warp broken or weft broken.
  3. Lower centre of the gravity, good stablility, low noise and watt consumption, high efficiency
  4. Large adjust range: The tinsel gauzes can be weaved out by the machine of not only square holes from 40 to 400 mesh but also special kinds up to 2600mesh, such as plain weave, taper weave. Zooz weave and taper contrast high thickness weve etc and have advantage over ones by other machine.

Main technical data:



Width of fabric to 1800mm
Aperture 4-20mesh(square holes gauze);2600mesh(special gauze)
Crank shaft rotating speed 40rpm
Power of motor 5.5KW
Rotating speed of motor 1450rpm
Total weigh 6000kg
