16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

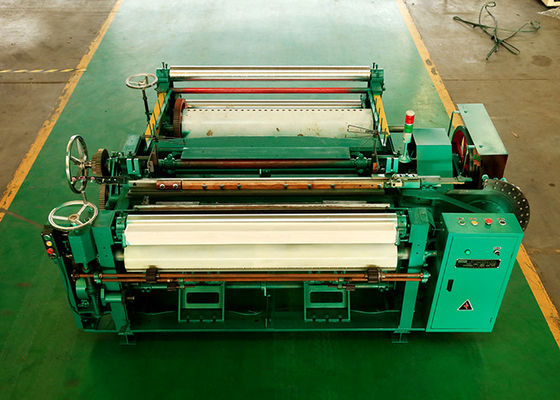

16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine

16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine
16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine 16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine 16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine

Large Image :  16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian
Certification: ISO-9001
Model Number: JL-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 2000-10000 USD
Packaging Details: As requirements
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Color: Light Blue Width: 2.4m
Certification: As Requirement Business Type: Manufacter
Wire Diameter: 0.25mm Warranty: 1 Year
High Light:

2.4m Steel Wire Mesh Machine

,

0.45mm Steel Wire Mesh Machine

,

0.45mm Stainless Wire Mesh Machine

16mesh*0.45mm stainless steel wire mesh machine





Metal mesh weaving machine, also known as shuttleless weaving machine, is divided into three types, namely

Zwj-1300 medium and heavy mesh machine, zwj-1600b type metal mesh machine and zwj-2000 heavy metal mesh machine.

1. Among them, zwj-1600b machine has the international quality, which can replace the import. It adopts shuttle free linear weft insertion, mechanical automatic diameter feeding, passive cutting, automatic stop display of broken diameter and weft. It shrinks and weaves metal wire mesh, which is widely used in liquid, gas filtration and solid particle screening in petroleum, chemical, mechanical, military, aerospace and other industrial sectors.

Application: the wire mesh knitting machine has the following six characteristics: single motor control, automatic compensation for coiling and feeding diameter, diameter breaking, weft breaking and automatic stop alarm, suitable for soft black metal, stainless steel, flexible copper wire, lead wire, organic fiber, five arbitrary combinations, etc.

Operating procedures for metal mesh knitting machine

1, Preparation before operation:

1. Workers shall wear work clothes, gloves and other labor protection articles before driving.

2. Prepare tools (wire shear, thread casing, hammer) and measuring tools.

3. Check whether all parts of the equipment are normal. If there is any fault, inform the mechanical and electrical work area, and start the machine after being repaired by professionals.



2, Operation procedures of wire winder: 1. Before transporting the wire to the wire roller, cut the binding wire of the wire bundle with a large shear, and then place one by one on the wire roller.

2. Put the wire through the two inch iron pipe on the ground. Fix the small wire roller at one end of the winder, tighten the screws, put one end of the wire through the wire arranging handle, and insert the eyelet of the small wire roller, hold the wire arranging handle with the left hand, and operate the power switch with the right hand.

3. Be sure to pay attention when winding the wire. At the same time, check whether the small roller line is in order, and at the same time, check whether the iron wire turntable operates normally. In case of wire entanglement, stop the power supply in time. The wire can be wrapped after the wire is adjusted.

4. Stop the power supply when wrapping the small wire. Hold the edge of pulley with right hand in time to prevent the wire from loosening on the roller due to rebound of wire roller. **Cut the wire with a big scissors. Insert the wire head into the eyelet of the wire roller and remove it

Bolt for lower wire roller.

3, Operation procedures of the netting machine:

1. Check the machine to make sure it is in good condition.

2. Stand in front of the machine switch to ensure that any part of the machine can be observed.

3. First turn on the machine signal power, then turn on the power switch, * * turn on the speed control controller.

4. During the operation of the machine, pay attention to the interweaving of warp and weft. If both sides of the weft hook fall off, turn off the speed controller and power switch in time. Adjust the distance between the warp and the weft before operation.

5. During the operation of the machine, pay attention to observe the use of the warp and shuttle wires to avoid the wire mesh not in good condition due to the use of the wire and the delay of wire extension.

6. During the operation of the machine, oil the shuttle bracket of the machine in time to prevent the machine from wearing due to lack of oil.

7. After using the machine, turn off the speed controller first and then turn off the signal lamp and power supply.

4, Operating procedures for butt welding machine:

1. Adjust the current regulator according to the wire diameter.

2. Fix the two wires in the welding tongs respectively, pull the safety handle to align the two wire heads.

3. Turn on the power switch and observe whether the wire welding parts are fused together.

4. Release the safety handle and take out the fused wire.

5. Use pliers to remove the excess parts of fusion joint.

5, Operation precautions:

1. When winding the wire to the wire reel or shuttle, it must be uniform and tight, and there must be no dead buckle.

2. In the process of knitting, if the thread breaks or the roller and shuttle need to be replaced, the machine must be stopped before operation.

3. If the motor or gearbox makes abnormal noise or the temperature is too high during the operation, it must be stopped immediately, and the work can only be carried out after being checked and repaired by the personnel in the mechanical and electrical area





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 year, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable  machine to overseas to help our customers to take the wire mesh market,During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.



Adjustment of the warp feeding unit:

When the weaving machine is normally running, the pullback rod is maintained stable in principle, If the pullbak rod is rising, the warp feeding pin shall be down adjusted, If the pullback rod is failing, the warp feeding pin shall be up adjusted

Additionally, Feeding for a net in certain density is realized by adjusting the take-up rate and the warp feeding rate, When a pair of gears is configured but the required warp feeding rate can be not realized by adjusting the warp feeding pin, It need to replace with another gear pair.



The Appllication of the steel wire mesh machine



SS Wire mesh weaving

Protective wire mesh weaving

Window Screen Wire Mesh

Filter wire mesh weaving

Mirogroove Wire Mesh

Cobber Wire Mesh

the products are widely used in various industries including petroleum, chemical industry, machinery and aviation,etc



The Technical Parameters of the Wire Mesh Weaving Machine



Item Machine Type Unit Reference Value
total weight ZWJ-1300A kg 2700
  ZWJ-1300B kg 2750
  ZWJ-1300Q kg 2900
External dimension ZWJ-1300A mm 2600*2800*1200
  ZWJ-1300B mm 2600*2800*1200
  ZWJ-1300Q mm 2630*3100*1360
Installation Dimension ZWJ-1300A mm 2300*2600
  ZWJ-1300B mm 2300*2600
  ZWJ-1600Q mm 2300*2660



The Picture of the Wire Mesh Weaving Machine parts



16 Mesh 0.45mm Stainless 2.4m Steel Wire Mesh Machine 0
