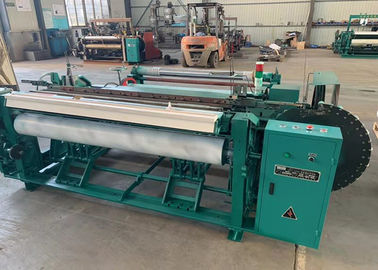

1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction

1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction
1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction 1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction

Large Image :  1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1600B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Keywords: Wire Mesh Weaving Machine Place Of Origin: Hebei, China (Mainland)
Type: Fully Automatic Wire Diameter: 0.025-0.2
Voltage: 380V After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

industrial weaving machine

,

fiberglass weaving machine

High Speed Full Automatic Shuttleless Weaving Machine With Wire Net Maximum Breadth 1600 mm For Twill /Plain Weave





The machine introduced

High speed shuttleless weaving machine is new machines.We choose new material of shuttle belt which is carbon fiber , it is lighter, and have more tenacity, it make it is more durable and faster.The gripper moves faster, while, the machine is whole system, we change the headle frame movement, which to suit the faster speed. The gripper moves faster, how the weft wire fastly leave the bobbin, which become to a problem, after we research, we successfully solve the problem, then , the whole machine system can perfectly work together.
.Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3. Fast weaving

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.





The technical parameters are shown in the Table below.


Item Unit Reference value
Wire net maximum breadth mm 1600
Density mesh/inch 40--400
Crankshaft rotating speed r/min 65~80
Brake moto Power KW 2.2/5.5
Brake moto Voltage V 380
Brake moto Rotating speed r/min 1420
External dimension mm

2600×2800×1200

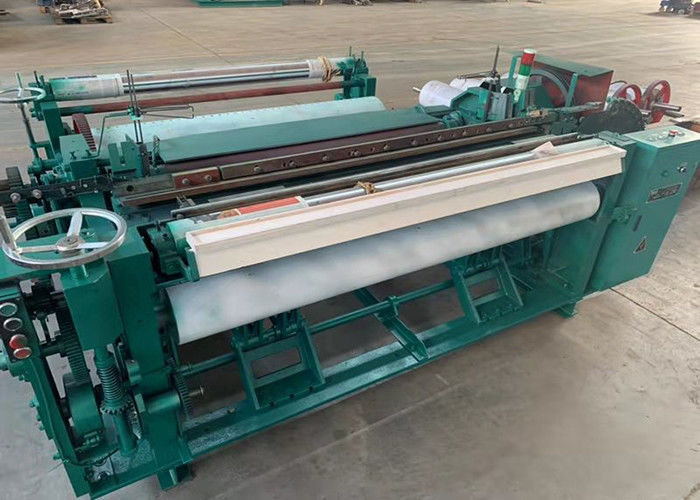

1600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction 01600mm Metal Wire Net Shuttleless Weaving Machine Simple Construction 1
