1300mm Width Ss 0.05mm Wire Mesh Weaving Machine

1300mm Width Ss 0.05mm Wire Mesh Weaving Machine
1300mm Width Ss 0.05mm Wire Mesh Weaving Machine 1300mm Width Ss 0.05mm Wire Mesh Weaving Machine

Large Image :  1300mm Width Ss 0.05mm Wire Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2024

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.6m Width: 2100mm
Speed: 70r/min Wire Diameter: 0.05mm
Raw Material: Stainless Wire Mesh Size: 80 Meshes
High Light:

1300mm Wire Mesh Weaving Machine

,

1300mm Width mesh weaving machine

,

0.05mm Wire Mesh Weaving Machine

Easy to Maintennace 1300 Width Shuttleles CNC Gripper Wire Mesh Loom For SS Wire Mesh



1 Full-Automatic stainless steel weaving loom Main features:



Speed: 100(max.120) , Frquency step-less speed regualtion, the actual seppd depends on the weaving width and detailed specifications.

The wire mesh loom is high precision,low noise, diverse patterns ans easy to maintenance, It can weave different metal wires such as : stainless steel wire, copper wire, iron wire, brass wire, phosphor copper wire amd aluminum, platinum and other non-metal wires such as polyester, plastice and so on

Standard width:1000mm, 1300mm,1600mm,2000mm,2500mm

Wire diameter Range: 0.06-0.45mm

Weaving Density: plain weave square hole 20-260 mesh per inch



2 :Instruction of the stainless steel wire mesh loom



Standard Width 1000mm,1300mm,1600mm,2000mm,2500mm
Wire diameter 0.03-0.3mm
Weaving Density plain weaving


3: The application of  stainless wire mesh



Single electromotor driving
Automatic compensation of winding and was feeding
It stopped automatically when the latitude and longitude is cut off
Be suitable for soft ferrous metal, stainless steel, flexible brass



The iron wire, copper wire, brass wire , Alumunium wire is suitable for the machine

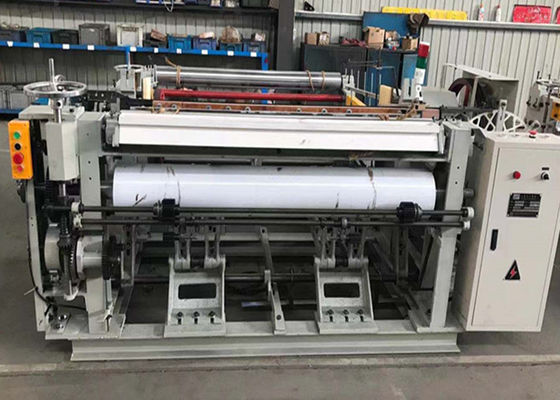

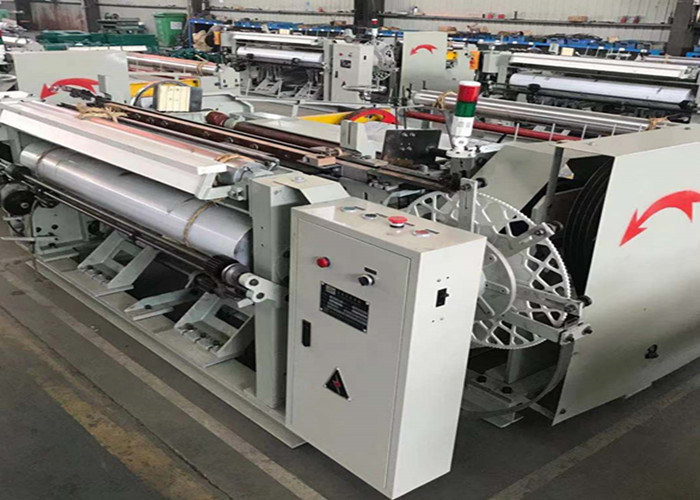

4 :The details of the stainless steel wire mesh weaving machine



1300mm Width Ss 0.05mm Wire Mesh Weaving Machine 0
