1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine

1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine
1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine 1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine 1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine 1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine

Large Image :  1300mm Width Shuttleless Weaving Machine , Low Noice Industrial Weaving Machine

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ--1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/month
Detailed Product Description
TYPE: ZWJ-1300B MESH SIZE: 40-400mesh/inch
WIRE DIAMETER: 0.025-0.200mm BEATING-UP FREQUENCY: 70 R/min
MESH WIDTH: 1300mm OVERALL SIZE: 2.6m*2.8m*1.4
High Light:

wire mesh equipment

,

industrial weaving machine



2.2 kw 1300mm Width Low Noice Shuttleless Weaving Machine For 40-400 mesh/inch







Summary

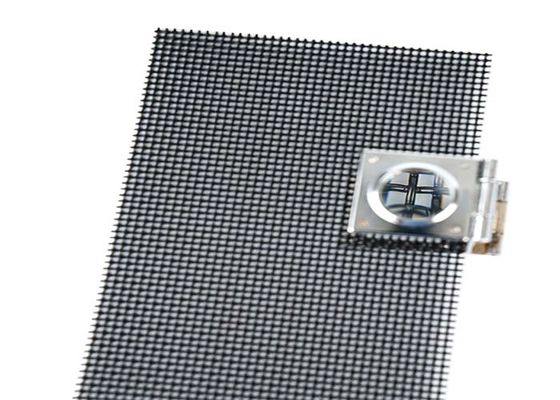

The light-duty metal wire net weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.



Main features

  1. It is highly adaptive to metal wires.
  2. It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
  3. The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
  4. It works automatic stopping and displaying functions at any warp broken or weft broken.
  5. The whole machine works stably in a low center of gravity and a low level of noise.



Main Parameters:



TYPE ZWJ-1300B ZWJ-1600B ZWJ-2100B
MESH SIZE 40-400mesh/inch 40-400mesh/inch 40-400mesh/inch
WIRE DIAMETER 0.025-0.200mm 0.025-0.200mm 0.025-0.200mm
BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 2.6m*2.8m*1.4m 2.6m*3.1m*1.4m 2.6m*3.6m*1.4m


Main components and specification



In the direction of the technical flow for weaving, it mainly consists of: take-up unit, weft beating-up unit, opening unit, and warp feeding unit, etc.



Operation



  • The weaving machine can be operated through press buttons and turn knobs, shown as Fig. 1.

Forward

Inch

Stop

Reverse

Manual

Automatic

О

О

О

О

О



  • The weaving machine can be started up and stopped at any running position.
  •
  • It has the function of automatic stop and red/green light indication at weft or warp broken.
  •
  • Turn the knob to the MANUAL stage to release the motor brake for manual trial running and adjusting.
  •
  • Turn the knob to the AUTOMATIC stage and then press the FORWARD button to bring the weaving machine into normal operation.



  • At a fault of weft broken or warp broken, the weaving machine will be automatically stopped and the red/green light will give an indication. The weaving machine can be brought back into normal operation after the fault is removed, the STOP button is pressed down, and the indicator is turned off. If the indicator does not turn off when the STOP button is pressed down, and the weaving machine can not be brought back into normal operation even by pressing down the FORWARD button, it means the fault hasn't been removed yet.



  • When necessary, the weaving machine can be stopped at any running position by pressing down the STOP button.
  •
  • The weaving machine will be brought into reverse running by pressing down the REVERSE button. Usually reverse running is required at any weft broken, but it is recommended not using this function frequently otherwise the rapier will break off the warp line or the motor will be damaged because of overheat.
  •
  • The weaving machine will be inching by pressing down the INCH button, but it is recommended not using this function otherwise the motor will be damaged.
  •
  • Installation and Tiral Operation
